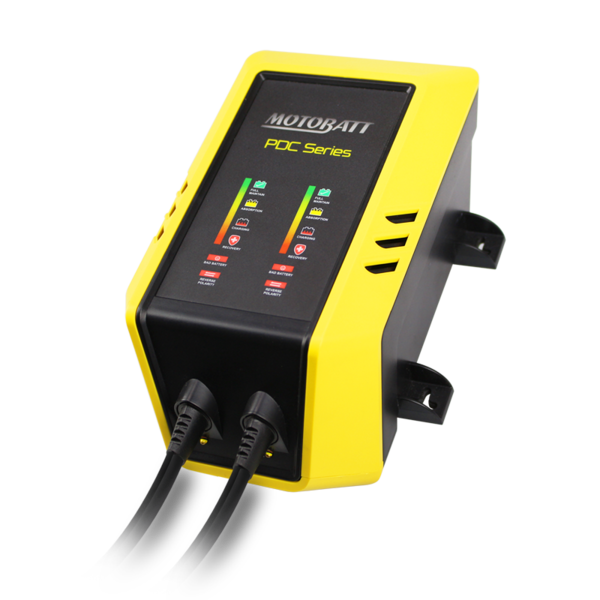

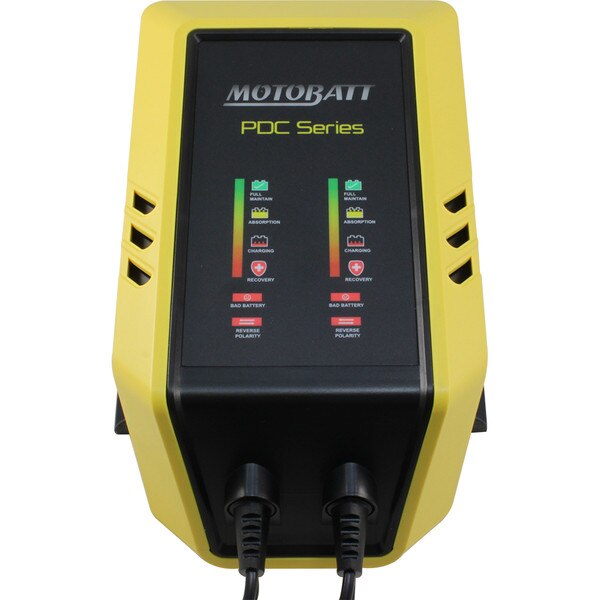

PDC2X2A Motobatt 12V 2 Station Charger
SKU: PDC2X2A
Overview
Motobatt PDC2X2A 12V 2.0 Amp Dual Bank Charger 2 "Self-Sensing" 9 Step Fully Automatic Chargers in one neat unit Killer combination for a workshop or man cave. No more untidy dangerous charging areas, Motobatt Multi Station chargers make charging a breeze, just plug, clip and leave. No Sparks, fumes or dangerous conditions left unattended. Application: This Two Station Charger can charge or maintain two separate sized batteries at one time, so your boat, Ski, Mower, Bike Car or RV can stay in premium condition ready to ride or roll. Motobatt's clever Microprocessor reads the correct voltage of the battery connected, the 9 Phase process monitors the battery resistance 100's of times per second during charging mode. Qualification Stage checks the battery is over 2V for safety reasons, then transitions to "Rescue" Phase where an arsenal of 5 different recovery modes can be utilised to revive heavily Sulphated or deeply discharged batteries. Generally at this stage unusually high voltage is seen early in the charge cycle, once the rescue phase is done the battery is ready for Soft Start Phase When the charger detects a low initial state of charge, voltage and current are delivered at a specific rate to assist the battery recovery before entering Pulse charging mode. Pulse Phase provides a high frequency pulse charge to help the newly recovering battery to accept charge as it enters recondition mode. Recondition Phase continues to work the battery at a slightly higher voltage and amperage to re-activate the battery plates for improved depth of charge. Now that the battery has been eased back to life……. Bulk charge phase can begin giving constant current to the battery up to about 80% of its capacity. Absorption Phase begins with constant voltage being supplied while current is reduced. This occurs according to the batteries ability to accept charge up to 100%. Check Phase is now activated to monitor the batteries ability to hold the charge properly, if not it will cycle back through the entire process for 24 hours or more until it determines the battery cannot be recovered. For revived batteries it then enters Maintenance Phase where the battery can stay indefinitely connected to the charger. As the battery drops voltage while unused, the unit will activate when needed to ensure a full state of readiness. Keeping your batteries properly maintained with dramatically Extend working Life.
Replaces
MBC2B, 022-0165-DL-WH
Specifications
Charger Type | Part Number PDC2X2A Motobatt Dual Bank Lead Acid Charger |
---|---|
Voltage | 12V |
Capacity | 2 Amp |
Algorithm | 9 Step Automatic Charging and Maintaining |
Input | Auto Switching 120-240VAC-50/60Hz |
Max Voltage | 14.9V (Pb) Temperature Compensated |
Input Cable | 6Ft 18AWG, US SPT-2, EU-H03VV |
Application | 12V Batteries Standard flooded, AGM, GEL |
Special Features | Overcharge Protection, Reverse Polarity protection, Short circuit protection, Spark Proof Battery Recovery Mode, 72 Hour safety timer |

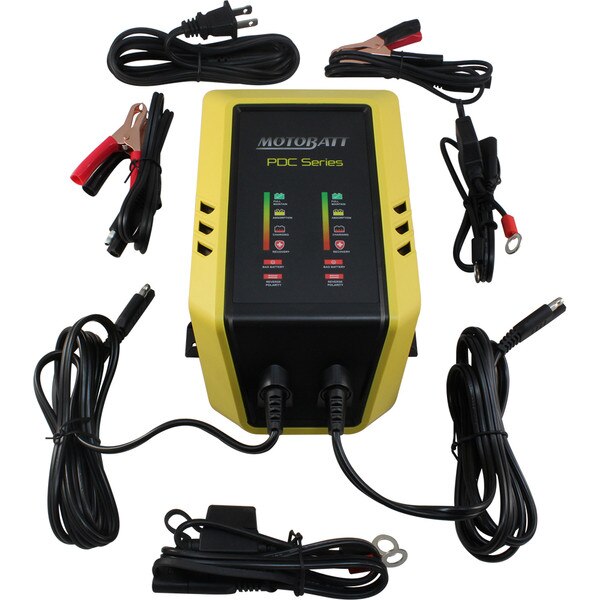

Accessories Included | 2x MB-CCRT 21" Length, 6mm Diameter RIng Terminal with 7.5A Fuse and 2DIN connector plug, MB-MAP 21" 2x MB-CCAC 21" Length, Alligator Clip Leads |

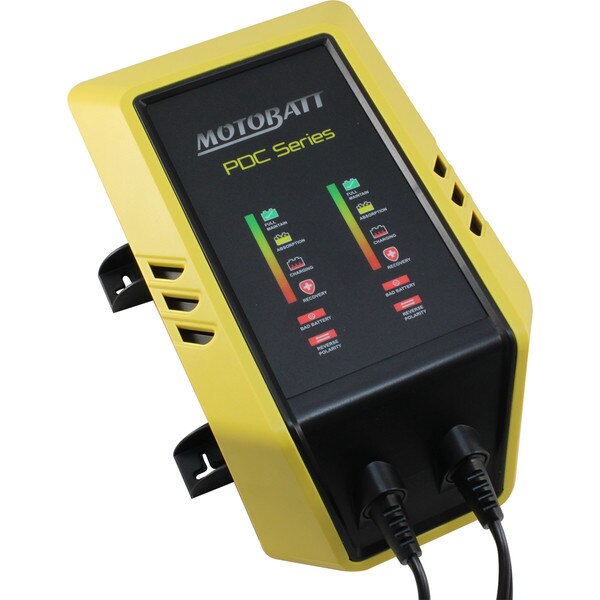

Wall Mountable | YES |
Recommended Battery | 4-100AH Lead Acid Battery, Charging and Maintenance |
