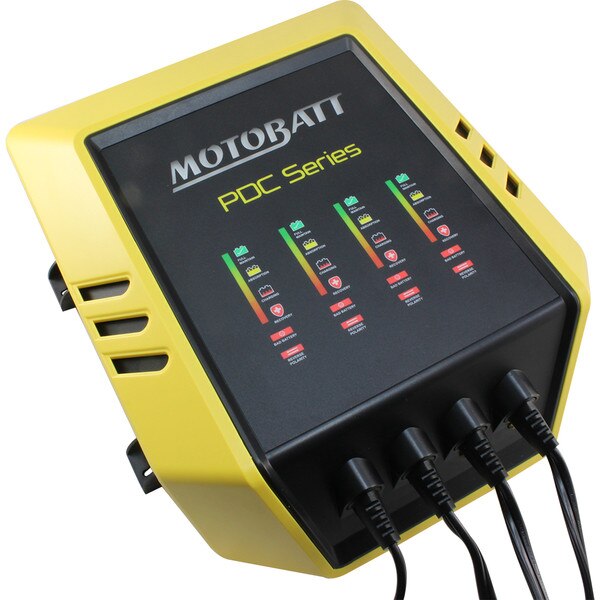

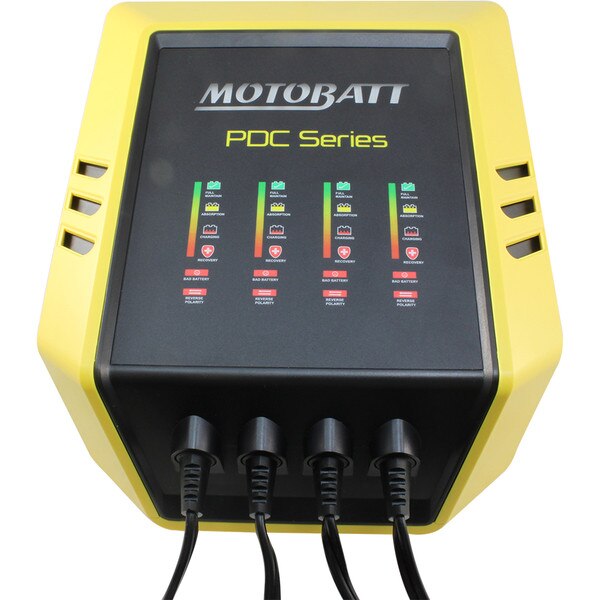

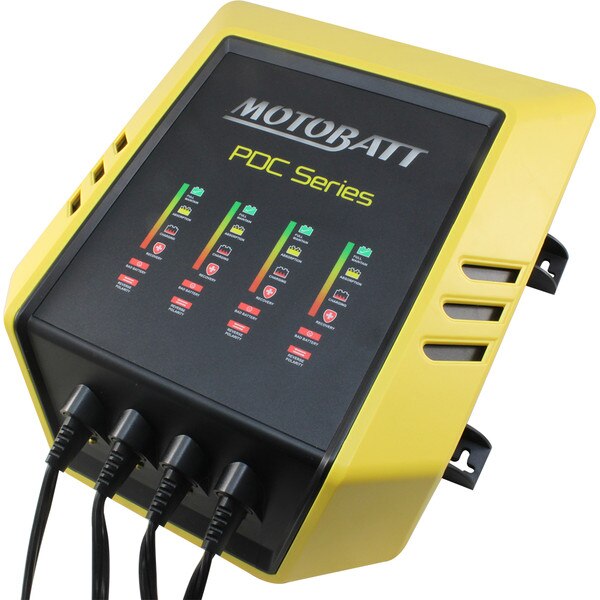

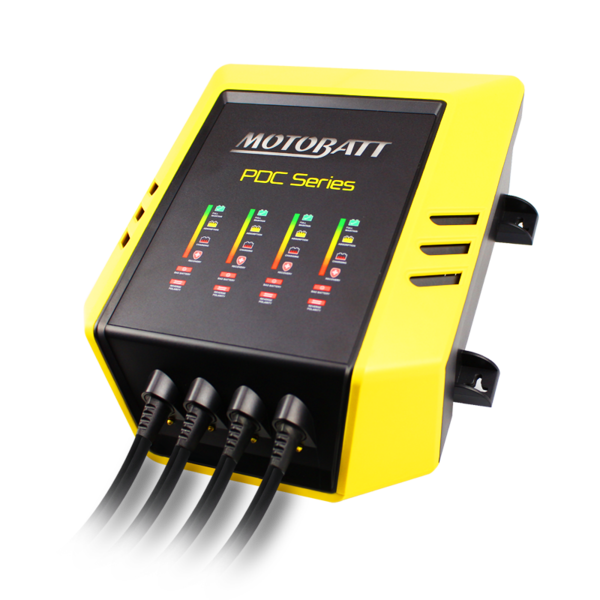

Motobatt PDC4X2A 12V 2.0 Amp Quad Bank Charger Four Intelligent individual 9 Step Fully Automatic Chargers in one neat and tidy wall mounted unit. A Killer combination for a workshop or man cave. No more untidy dangerous charging areas, Motobatt Multi Station chargers make charging a breeze, just plug and leave. No Sparks, fumes or dangerous conditions left unattended. Application: This Four Station Charger can charge or maintain Four separate sized batteries at one time, so your boat, Ski, Mower, Bike Car or RV can stay in premium condition ready to ride or roll. Motobatt's clever Microprocessor reads the correct voltage of the battery connected, the 9 Phase process monitors the battery resistance 100's of times per second during charging mode. Qualification Stage checks the battery is over 2V for safety reasons, then transitions to "Rescue" Phase where an arsenal of 5 different recovery modes can be utilised to revive heavily Sulphated or deeply discharged batteries. Generally at this stage unusually high voltage is seen early in the charge cycle, once the rescue phase is done the battery is ready for Soft Start Phase When the charger detects a low initial state of charge, voltage and current are delivered at a specific rate to assist the battery recovery before entering Pulse charging mode. Pulse Phase provides a high frequency pulse charge to help the newly recovering battery to accept charge as it enters recondition mode. Recondition Phase continues to work the battery at a slightly higher voltage and amperage to re-activate the battery plates for improved depth of charge. Now that the battery has been eased back to life……. Bulk charge phase can begin giving constant current to the battery up to about 80% of its capacity. Absorption Phase begins with constant voltage being supplied while current is reduced. This occurs according to the batteries ability to accept charge up to 100%. Check Phase is now activated to monitor the batteries ability to hold the charge properly, if not it will cycle back through the entire process for 24 hours or more until it determines the battery cannot be recovered. For revived batteries it then enters Maintenance Phase where the battery can stay indefinitely connected to the charger. As the battery drops voltage while unused, the unit will activate when needed to ensure a full state of readiness. Keeping your batteries properly maintained with dramatically Extend working Life.
MBC4B, 022-0148-DL-WH Battery Tender
Part Number PDC4X2A Motobatt Dual Bank Lead Acid Charger

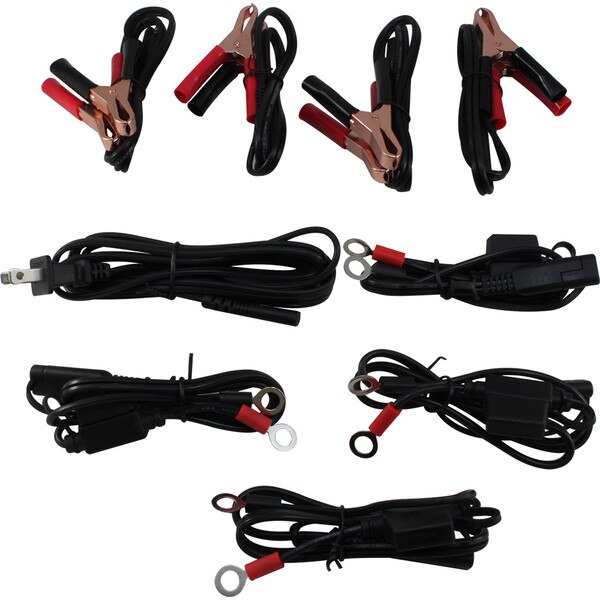

4x MB-CCRT 21" Length, 6mm Diameter RIng Terminal with 7.5A Fuse and 2DIN connector plug, MB-MAP 21" 4x MB-CCAC 21" Length, Alligator Clip Leads
4-100AH Lead Acid Battery, Charging and Maintenance
L: 9" W: 4" H: 9"
