MB9U Motobatt 12V AGM Battery

SKU: MB9U
$76.84
Download Product Specifications PDF
Motobatt MB9U QUADFLEX AGM Factory Activated

Battery TypeMB9U
Voltage12V CCA: 140
Capacity (10HR)11Ah
Weight:3.35kg / 7.39Ibs

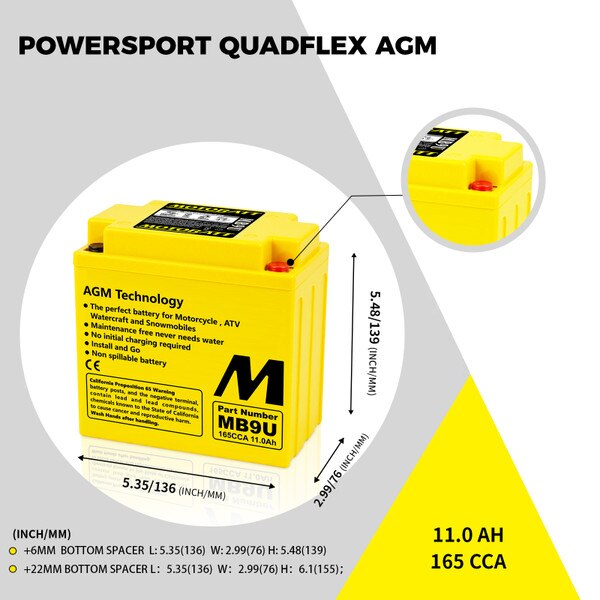

Dimensions (in / mm)L: 5.35(136) W: 2.99(76) H: 5.24(133)
TH1: 5.48(139) TH2: 6.1(154)
Assembly Figure

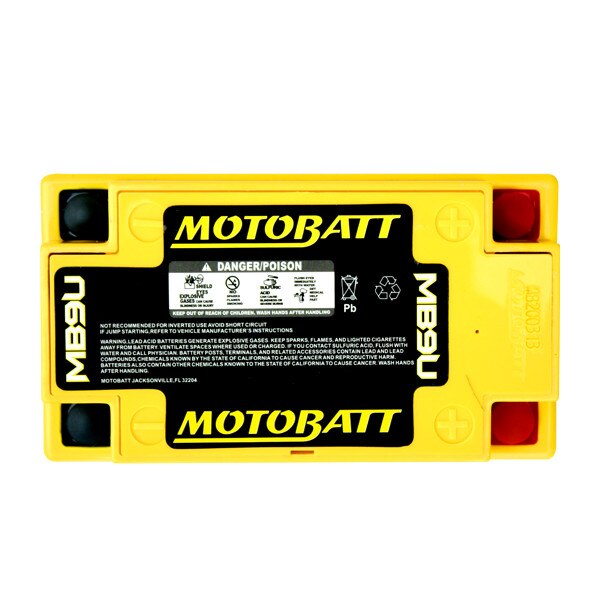

Terminal Locations:
4
Terminals:2, M6x2.5 (Part#MPT2)
Screws:4, M6X7 (Part#2xMPS2)
Allen Wrench:1, 4x4 (Part#MPAK2)
Terminal Caps:4, 12x5.5 (Part#2xMPC2)
Spacer:2, Bottom (Part# MPBS2) Spacer 1 = 6mm,
Spacer 2 =15mm, Total = 21mm
Battery Motobatt AGM YB9LA2/9B/LB/YB7A/LB *8
Motobatt MB9U QUADFLEX AGM Factory Activated
Replaces Yuasa YB9A, YB9AA, YB9A2, YB9LA2, YB9B, YB9LB, YB9B2, YB9LB2, YB7A, YB7AA, YB7LA, YB7LB, 12N73A, 12N73B, 12N7D3B, 12N74A, 12N74B, 12N93A, 12N93A1, 12N93B, 12N94B1
