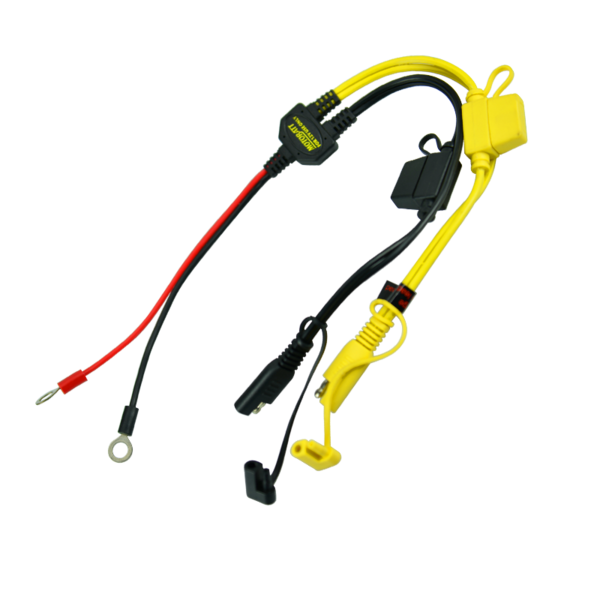

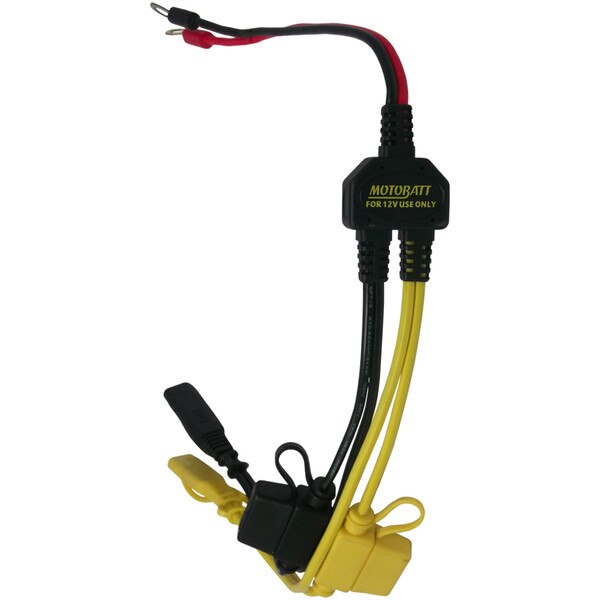

MB-DFCL Charger Cable Lead 21" Ring Terminals
SKU: MB-DFCL
Overview
Charger Cable Lead 21" With 18AWG 7.5A and 16AWG 15A Fused Din ConnectorsApplication: This is the total solution for those wishing to add electronic devices to their vehicle without the need to cut into wiring looms. Simply connect your MB-DFCL direct to your device. Utilize one of our Motobatt 18AGM cables like MB-CL5, MBCL-10 or MBCL-25 to run a pre-made loom wire to the device no matter where it is mounted on your powersport vehicle. Great for UTVs, ATVs, Cruisers, Off road or Street bikes. Keep Blowing your Ring Terminal Fuses when using accessories? Terminal connectors stacked all over your battery in a mess? Look no further! Motobatt has designed this quality cable harness to take heated clothing and larger "separate power draw via a 15A Fused circuit." With MB-DFCL not only can you draw power direct from the battery, but you can charge your battery also! The extra heavy duty 16AWG cables with the 15Amp fuse will take higher powered accessories without blowing the standard 7.5 Amp fuse circuit. The 18AWG leads with 7.5Amp fuse can be connected to the battery to accept your Motobatt battery charger outlet by way of the standard covered 2 Din Plug. Quality molded one piece for long life! Features Attach direct to any Power sport Battery Extra Heavy Fuse for Thirsty Accessories Standard Fuse for Maintenance Charging Plug right in when Vehicle is not in Use. Plug in Accessories with Vehicle is in Use. Test function direct from the lead Charge function direct with use of seperate MB-CCFP or MB-CCFPXL
Replaces
MB-CCRT, Battery tender 081-0069-6, Yuasa Yuasa YUA00ACC04
Specifications
Cable Type | MB-DFCL Dual Function lead |
---|---|
Dimensions | 21 Inches (53cm) Charging, 21 Inches (53cm) Power outlet |
Cable Size | 18AWG Charging with 7.5A fuse, 16AWG Power out with 15A fuse |
Plug Type | 2 DIN |
Terminal Type | 6mm Ring Terminal on both leads with waterproof rubber cap |
