MBD12200IT Motobatt 12V AGM Deep Cycle Battery
SKU: MBD12200IT
Overview
Battery Deep Cycle Motobatt AGM DC200-12 200AH (20HR) M8 IT/T11
Replaces
Group 4D Lifeline GPL4DL, Full River DC210-12, Rolls R12-200AGM Solar, Telecommunications, RV, Wheelchair Mobility, Marine, Automotive, Renewable Energy Storage, Security and UPS in fact anywhere a quality deep cycle battery is required.
Specifications
| Battery Type | MBD12200IT Deep Cycle |
|---|---|
| Specifications | |
| Voltage | 12 |
| Rated Capacity (20HR) | 210AH |

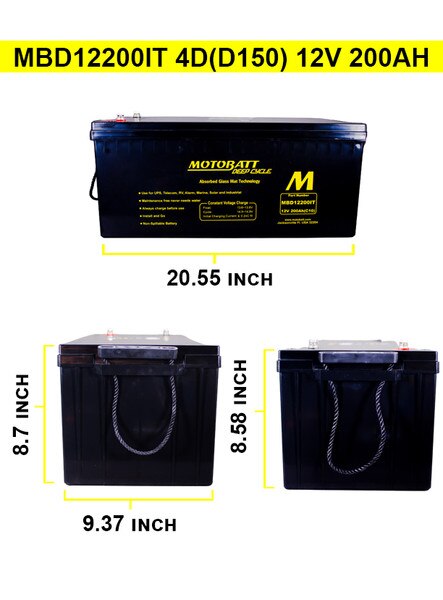

| Dimensions (in / mm) | Total Height Including Terminals: 221mm (8.70") L:522mm (20.55") W:238mm (9.37") H:218mm (8.58") |
| Weight | 63.68KG (140.39lbs) |
| Capacity 77F (25C) | |
| 20 Hour Rate | 210AH |
| 10 Hour Rate | 200AH |
| 5 Hour Rate | |
| Reserve Capacity @25Amps | 490 Minutes |
| Reserve Capacity @75Amps | |
| Internal Resistance (Fully Charged) | 3.0 Ohms |
| Capacity Affected by temperature (20HR) | 104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65% |
| Self Discharge 77F (25C) | 3 Months 91% 6 Months 82% 12 Months 65% |
| Max Discharge Current 77F (25C) | 1000A 5S |
| Terminal | M8 (With TP08 Brass AP and Stainless Steel Nuts and Bolts Included) |
| Charging | Cycle 14.5V-14.9V Float 13.6V-13.8V |
