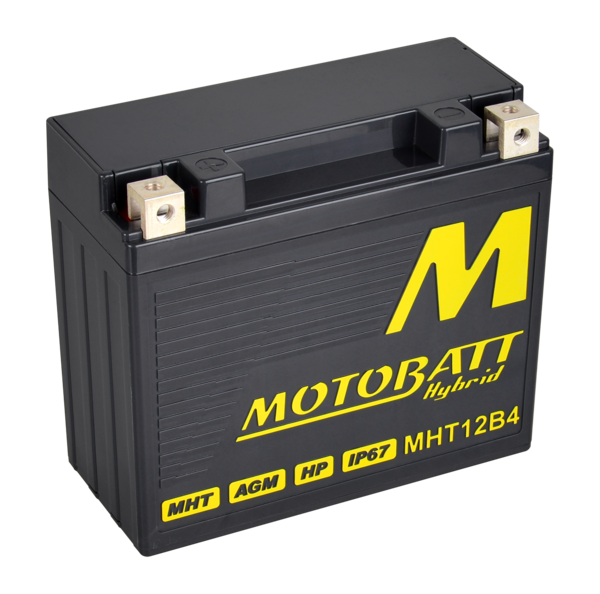

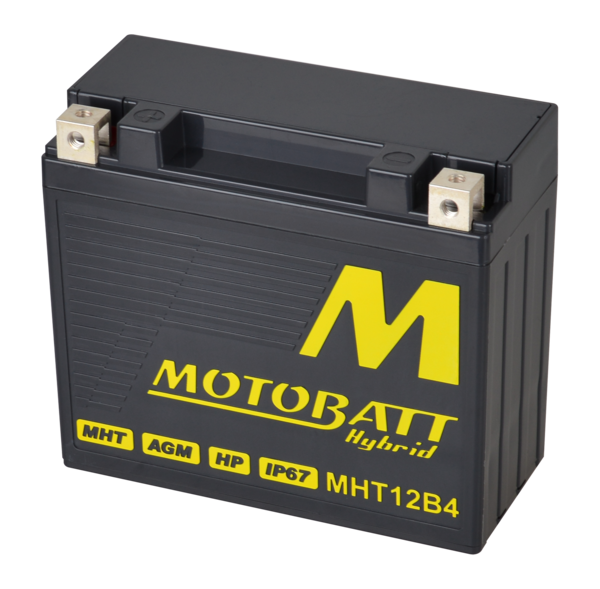

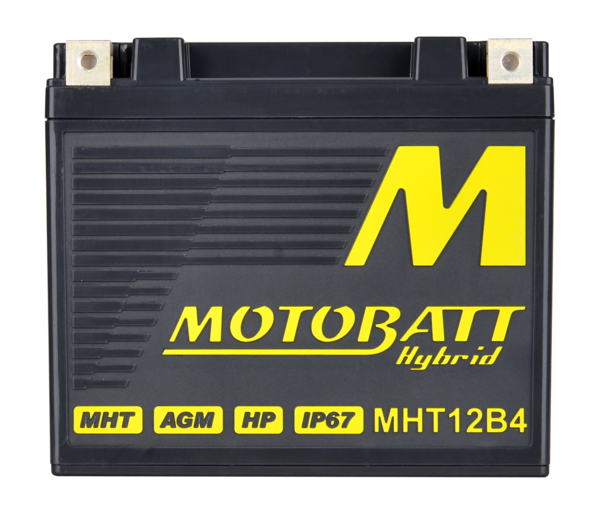

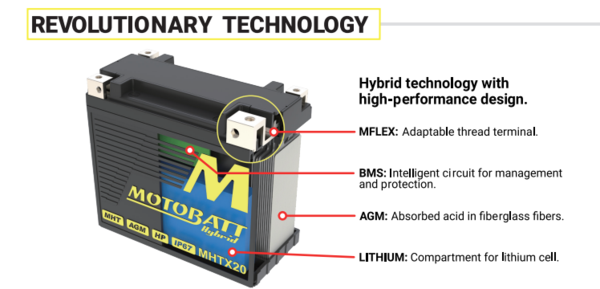

MHT12B4 Motobatt Hybrid Lithium Battery
SKU: MHT12B4
Specifications
Specifications
| Battery Type | MH14B4 |
|---|---|
| Voltage | 12 |
| CCA@-18C | 330 |
| MCA (CA@ 0C 7.2V) | 200 |
| PHCA (CA@ 27C 7.2V) | 450 |
| Capacity (10HR) | 8 Hybrid Ah, (Equivalent 12 Pb Ah) |
| Weight | 2.2kg / 5.51Ibs |
| Dimensions (in / mm) | 5.9(150) W: 2.75(70) H: 5.11(130) |

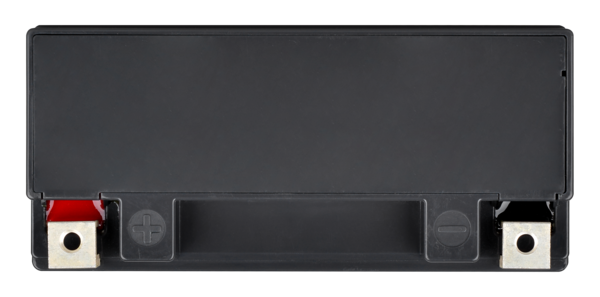

| Assembly Figure Terminal Locations | 4 |
| Terminal Nut Block | 2 Pos, M6X1.0 (Part#MHALN01) and 1 Pos, M6X1.0,(#MHALN02) |
| Screws | 4, M6X12 (Part#MHAS01) 8, M5X12 (#MHAS02) |
| Terminal Cover | 2, (Part#MHATC01) Red,Black |

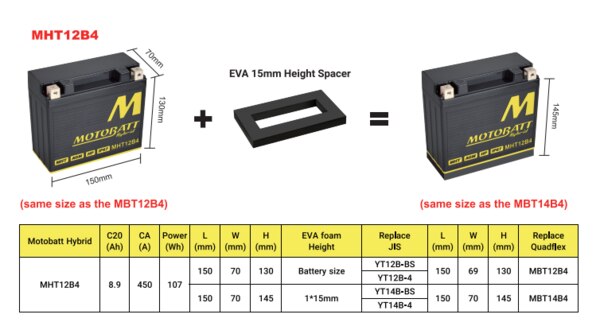

| EVA Spacers | 1, 15mm Back (Part# MHASP03) |
