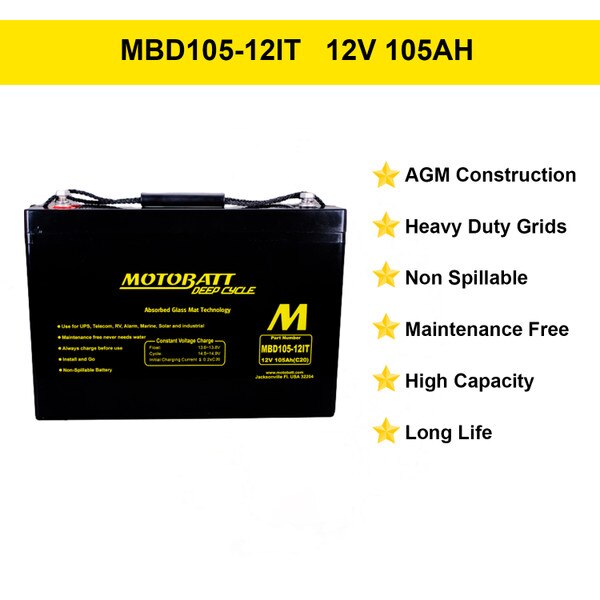

MBD10512IT Motobatt 12V AGM Deep Cycle Battery
SKU: MBD10512IT
Specifications
Specifications
| Battery Type | MBD10512IT |
|---|---|
| Specifications | |
| Voltage | 12 |
| Rated Capacity (20HR) | 105 |

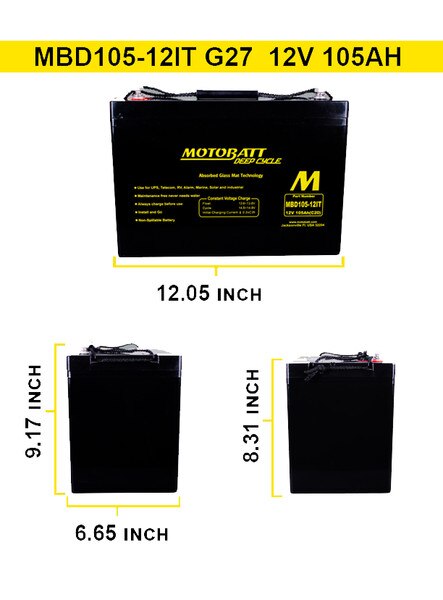

| Dimensions (in / mm) | L:12.05 (306) W:6.65 (169) H:8.31 (211) Total Height Including Terminals: 215mm (8.46") |
| Weight | 30.7KG (67.66 lbs) |
| Capacity 77F (25C) | |
| 20 Hour Rate (5.7A to 10.5 Volts) | 105AH |
| 10Hour Rate (11.0A to 10.5 Volts) | 95AH |
| 5 Hour Rate (18.8A to 10.5 Volts) | 92AH |
| Reserve Capacity @25Amps | 227 Minutes |
| Reserve Capacity @75Amps | 58 Minutes |
| Internal Resistance (Fully Charged) | 4.0 Ohms |
| Capacity Affected by temperature (20HR) | 104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65% |
| Self Discharge 77F (25C) | 3 Months 91% 6 Months 82% 12 Months 65% |
| Max Discharge Current 77F (25C) | 1000A (5S) |
| Terminal | M8 With Stainless Bolt |
