MBD12350NB Motobatt 12V AGM Battery
SKU: MBD12350NB
Specifications
Specifications
| Battery Type | MB12350NB |
|---|---|
| Specifications | |
| Voltage | 12 |
| Rated Capacity (20HR) | 35AH |

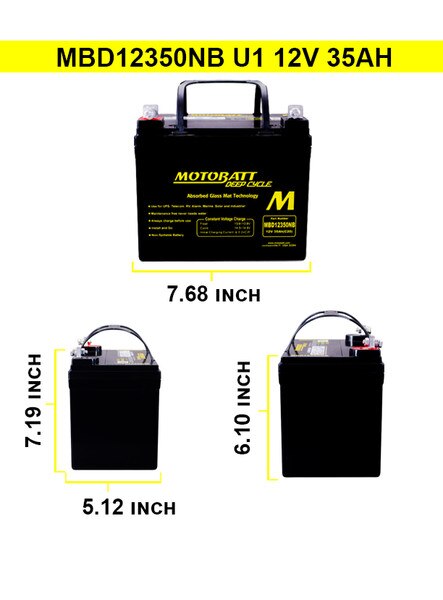

| Dimensions (in / mm) | Total Height Including Terminals: L:195mm (7.68) W:130 (5.12) H:155mm (6.10) |
| Weight | 9.21KG (20.30) Lbs |
| Capacity 77F (25C) | |
| 20 Hour Rate | 35AH |
| 10 Hour Rate | 32AH |
| 5 Hour Rate | |
| Reserve Capacity @25Amps | 48 Minutes |
| Reserve Capacity @75Amps | |
| Internal Resistance (Fully Charged) | 10 Ohms |
| Capacity Affected by temperature (20HR) | 104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65% |
| Self Discharge 77F (25C) | 3 Months 91% 6 Months 82% 12 Months 65% |
| Max Discharge Current 77F (25C) | 1000A 5S |
| Terminal | Lug Terminal with Stainless Nut and Bolt |
| Charging | Cycle 14.5V-14.9V Float 13.6V-13.8V |
