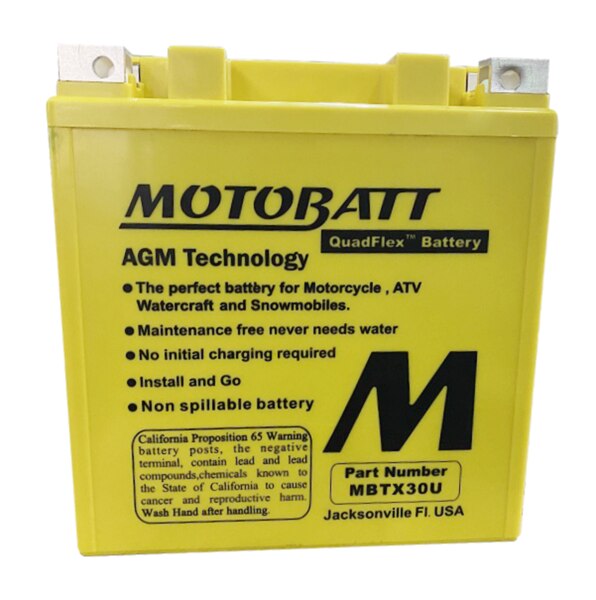

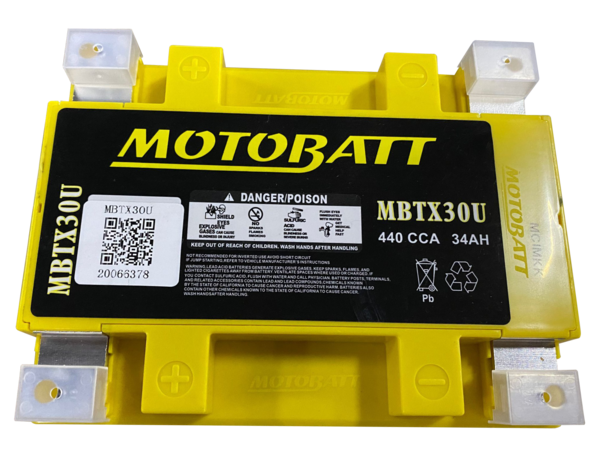

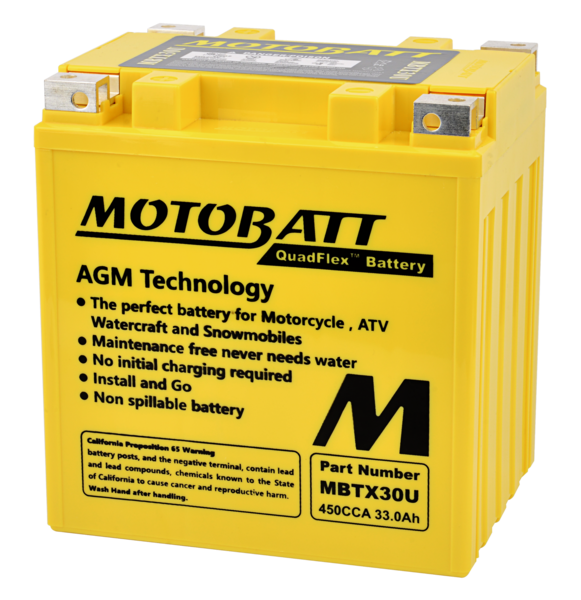

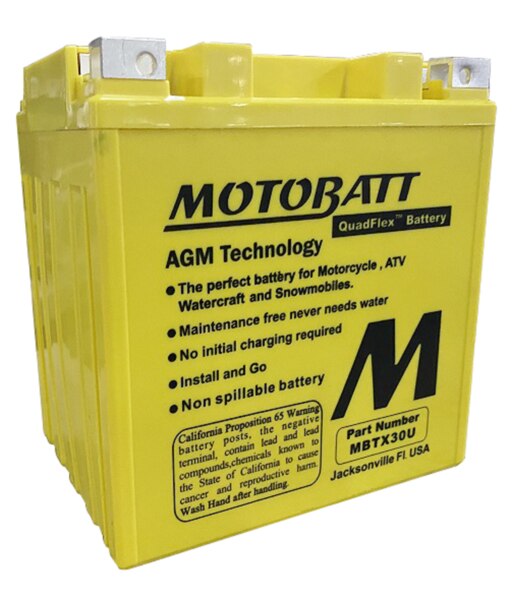

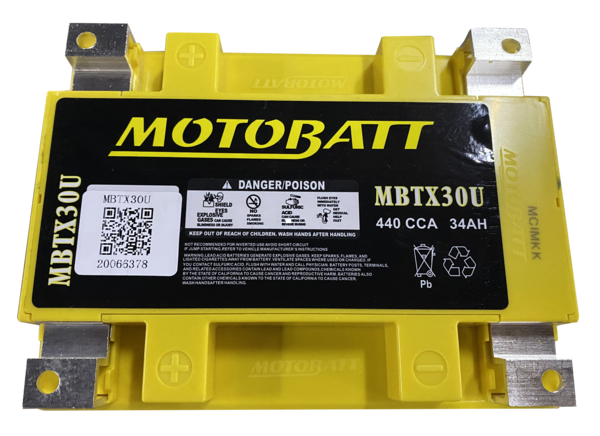

MBTX30U Motobatt 12V AGM Battery

1 Review
RRP: $180.79

In Stock


Motobatt Quadflex batteries , the first and unique 4 terminal system, proposes the best balance between CCA and Amp hour capacity. Due to utilizing the wasted space inside a standard battery case, Motobatt maximizes the dimensions of the plates internally. Additionally the plate grids are made thicker, and that with the additional density of the pasting improves the Amp Hour capacity, durability and Cold cranking Amps. Motobatt has completely changed the Powersport market by improving an old design. Features 20% More Amp Hour capacity* 20% More Cold Cranking Amps* Heavy Duty Pure Lead Calcium cast grids for high strength More surface area per plate for superior performance and longevity Military grade Absorbed Glass Matt separators, vibration resistant Multi Terminal Design, Easy to add accessories Factory Activated, No Acid to fill, Simply check charge and go! Extremely low self discharge rate 12 Month Full Replacement warranty


Yuasa Y60N24A, Y60N24ALB, Y60N24LA, Y60N24LA2, 12N24-3, 12N24-3A, 12N24-4, 12N24-4A, YIX30, YIX30L, YIX30L-PW, YIX30L-BS, YIX30L-BS-PW, YB30LB, YB30CLB, Y60N30LA, Y60N30LB, GYZ32HL, 52515, 53030
ODYSSEY PC925 (Side Mounted)


Battery TypeMBTX30U
CCA @-18C450AH
Capacity (10HR)33Ah, C20 36Ah
Weight10.2kg / 22.95Ibs

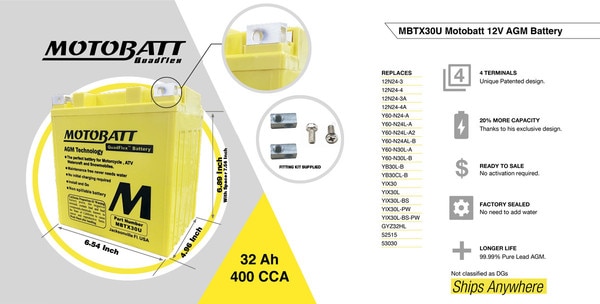

Dimensions (in / mm)L: 6.54(166) W: 4.96(126) H: 6.89(175)
TH: 7.56(192)
Assembly Figure Terminal Locations4
Terminals2 Black, 2 Red PART (MPC3)
Screws2x Screws M6x12 (PART MPS4)
Terminal Caps2 Black, 2 Red PART (MPC3)
Spacer17mm Bottom (Part#MPC2),
2 Square Top Corners (Part#MPSC)

WARNING: This product can expose you to chemicals including Sodium salt, Lead and Lead, Nickel (Metallic), which are known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit https://www.p65warnings.ca.gov/.


Ask a Question

Product Enquiry

Welcome to the contact us form. Please select the reason for your contact today from the drop-down menu, and let us know how to get hold of you by filling in the form and what times we can reach you. Enquires can take 24-48 hours depending on demand, but we will do our best to get right back to you!

Ratings & Reviews

1 review

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

Best cycle battery on the market by far!


I do not want to use any other battery in my Harley Ultra. Mine has been in my bike for 3yrs 8mos and still charging to 14.5v and still has 400cca. From the 1st time I started my high performance engine til now, I noticed the difference in power. The second I hit my start switch, it's running. I like the 4 terminals with my main cables on the primary terminals and my trailer wiring and accessories on the rear terminals.
