MBTX20UHD Motobatt 12V AGM Battery
SKU: MBTX20UHD
Specifications
Specifications
| Battery Type | MBTX20UHD | |
|---|---|---|
| Voltage | 12 | |
| CCA | 335 | |
| MCA | 395A | |
| PHCA | 605A | |
| Capacity (10HR) | C10 - 22.5Ah, C20 - 23.5Ah | |
| Weight | 6.50kg / 14.33Ibs | |
| Dimensions (in / mm) | L: 6.89(175) W: 3.43(87) H: 6.10(155) TW: 3.94(100) TH: 6.89(175) | |
| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2x Blocknut M6 (PART MPN2) | |
| Screws | 2x Screws M6x12 (PART MPS4) | |
| Terminal Caps | 2 Black, 2 Red PART (MPC3) | |

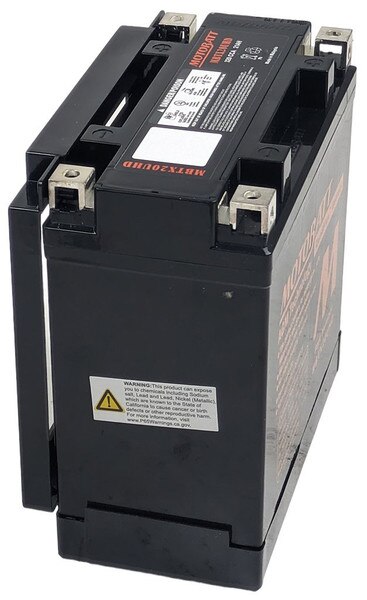

| Spacer | 2, 20mm Bottom (Part# MPBS7), 13mm Back (Part# MPSS) | |
