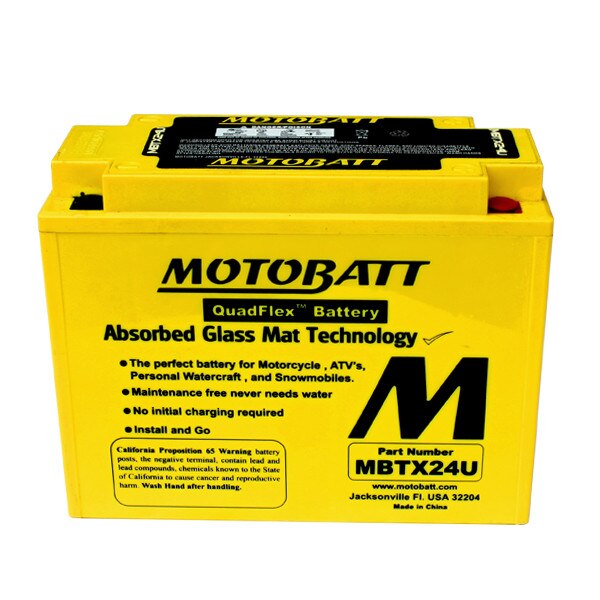

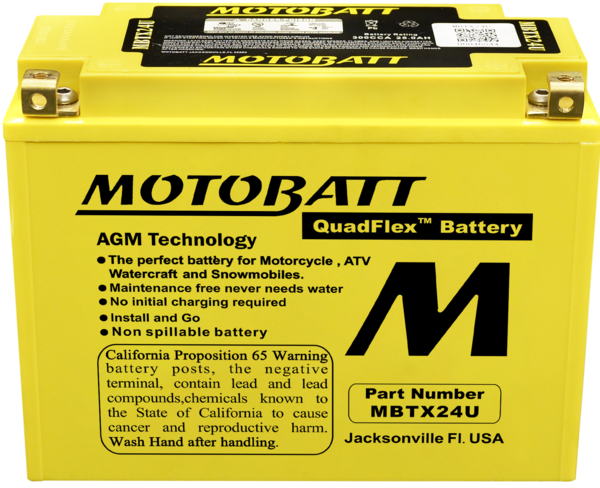

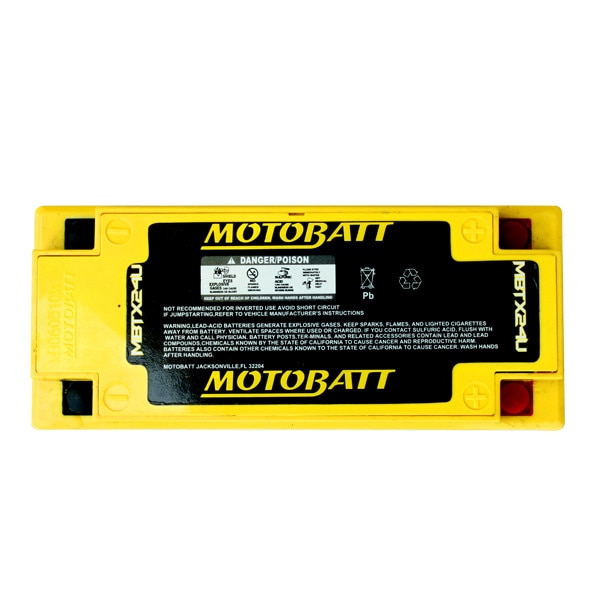

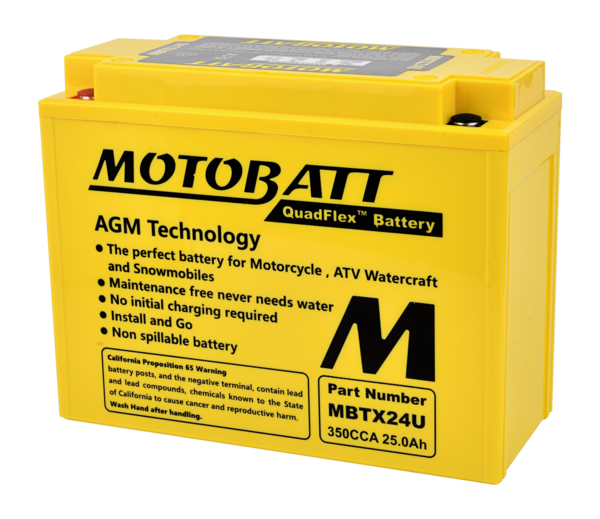

MBTX24U Motobatt 12V AGM Battery
SKU: MBTX24U
Overview
Battery Motobatt AGM YTX24HLBS/Y50N18LA/LA3/LAT *4/48/144
Replaces
Yuasa YTX18BS, YTX18LBS, GTX18LBS, Y50N18AA, Y50N18LA, Y50N18LA2, Y50N18LA3, Y50N18LACX, SY50N18LA, SY50N18LAT, YTX24HLBS, YTX24HL, 12N183, 12N183A
DEKA ETX18L
DEKA ETX18L
Specifications
| Battery Type | MBTX24U | |
|---|---|---|
| Voltage | 12 | |
| CCA | 350A | |
| MCA | 426A | |
| PHCA | 614A | |
| Capacity (10HR) | 25Ah, C20 26.5Ah | |
| Weight | 7.45kg / 16.44Ibs | |
| Dimensions (in / mm) | L: 8.07(205) W: 3.43(87) H: 6.38(162) TH: 6.93(176) | |
| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2, M6x2.5 (Part#MPT2) | |
| Screws | 4, M6X7 (Part#2xMPS2) | |
| Allen Wrench | 1, 4x4 (Part#MPAK2) | |
| Terminal Caps | 4, 12x5.5 (Part#2xMPC2) | |
| Spacer | 1, 14mm Bottom (Part#MPBS8) | |
WARNING: This product can expose you to chemicals including Sodium salt, Lead and Lead, Nickel (Metallic), which are known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit https://www.p65warnings.ca.gov/.
