MBD9012NB Motobatt 12V AGM Deep Cycle Battery
Overview
Replaces
Specifications
| Battery Type | MBD9012NB Deep Cycle Battery |
|---|---|
| Specifications | |
| Voltage | 12 |
| Rated Capacity (20HR) | 90AH |

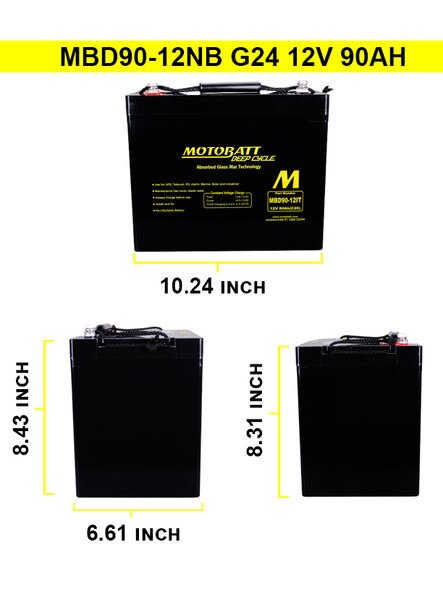

| Dimensions (in / mm) | L: 10.24 (260) W: 6.65 (169) H:8.31 (211) 8.46 (215mm) Total Height including terminals |
| Weight | 57.32 Lbs/ 26KG |
| Capacity 77F (25C) | |
| 20 Hour Rate (4.7A to 10.5 Volts) | 90AH |
| 10Hour Rate (9.0A to 10.5 Volts) | 84AH |
| 5 Hour Rate (15.5A to 10.5 Volts) | 77AH |
| Reserve Capacity @25Amps | 180 Minutes |
| Internal Resistance (Fully Charged) | 5.5 Ohms |
| Capacity Affected by temperature (20HR) | 104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65% |
| Self Discharge 77F (25C) | 3 Months 91% 6 Months 82% 12 Months 64% |
| Max Discharge Current 77F (25C) | 1000A 5S |
| Terminal | Nut and Bolt Terminal with Stainless Steel fasteners |
| Charging Constant voltage | Cycle 14.5V-14.9V/77F (25C) Float 13.6V-13.8V/77F (25C) |
WARNING: This product can expose you to chemicals including Sodium salt, Lead and Lead, Nickel (Metallic), which are known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit https://www.p65warnings.ca.gov/.
Ask a Question
Product Enquiry
Welcome to the contact us form. Please select the reason for your contact today from the drop-down menu, and let us know how to get hold of you by filling in the form and what times we can reach you. Enquires can take 24-48 hours depending on demand, but we will do our best to get right back to you!
Ratings & Reviews
1 review
Works great in my camper, great deal
by Cecil B
I grabbed these from my local battery shop for my outback camper. They are really heavy duty and a good replacement for the old UB12750's i was using. These are 90AH and last a lot longer. Picked up an extra 30 amp hours for the same price
