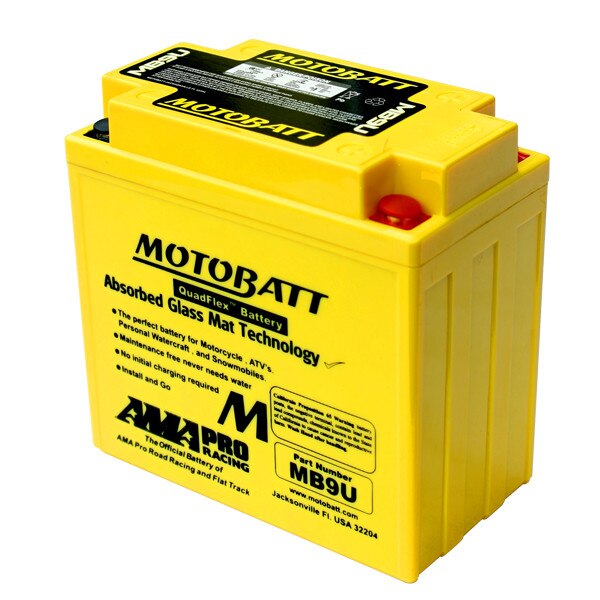

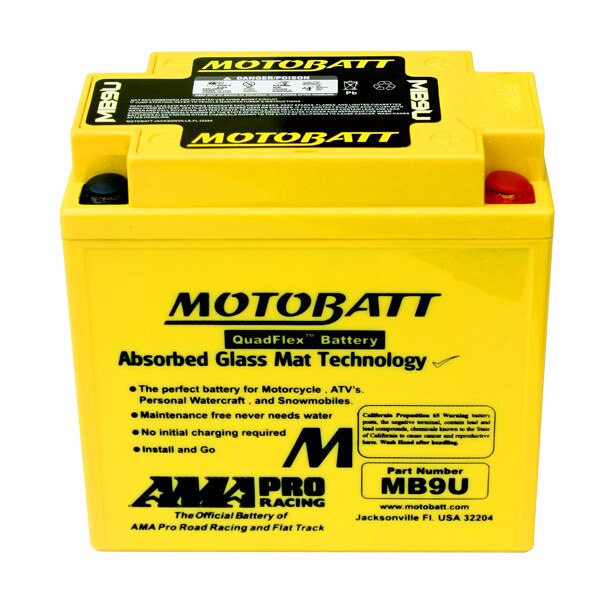

MB9U Motobatt 12V AGM Battery
SKU: MB9U
Specifications
Specifications
| Battery Type | MB9U | |
|---|---|---|
| Voltage | 12 | |
| CCA | 140 | |
| MCA | 201A | |
| PHCA | 385A | |
| Capacity (10HR) | 11Ah | |
| Weight | 3.40kg / 7.48Ibs | |

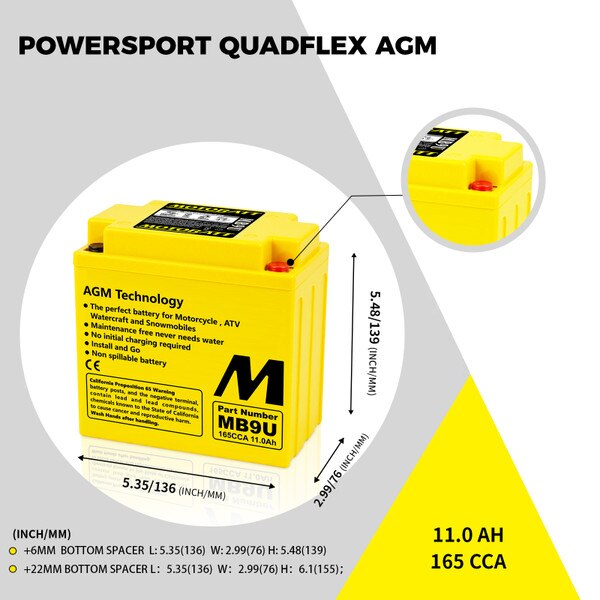

| Dimensions (in / mm) | L: 5.35(136) W: 2.99(76) H: 5.24(133) TH1: 5.48(139) TH2: 6.1(154) | |

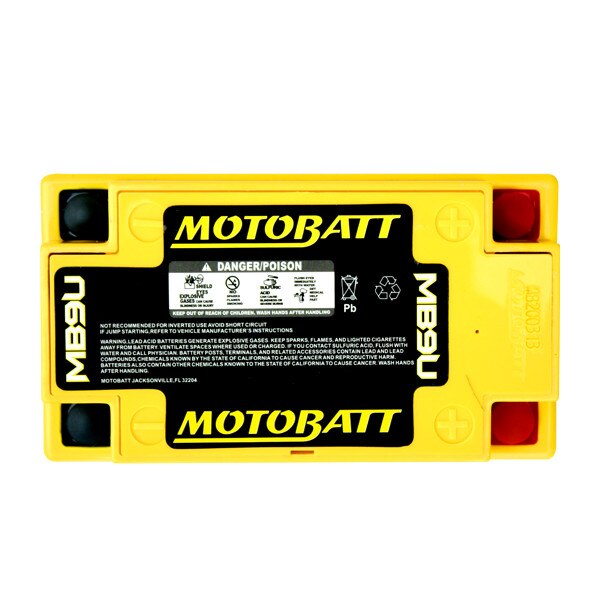

| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2, M6x2.5 (Part#MPT2) | |
| Screws | 4, M6X7 (Part#2xMPS2) | |
| Allen Wrench | 1, 4x4 (Part#MPAK2) | |
| Terminal Caps | 4, 12x5.5 (Part#2xMPC2) | |
| Spacer | 2, Bottom (Part# MPBS2) Spacer 1 = 6mm, Spacer 2 =15mm, Total = 21mm | |
