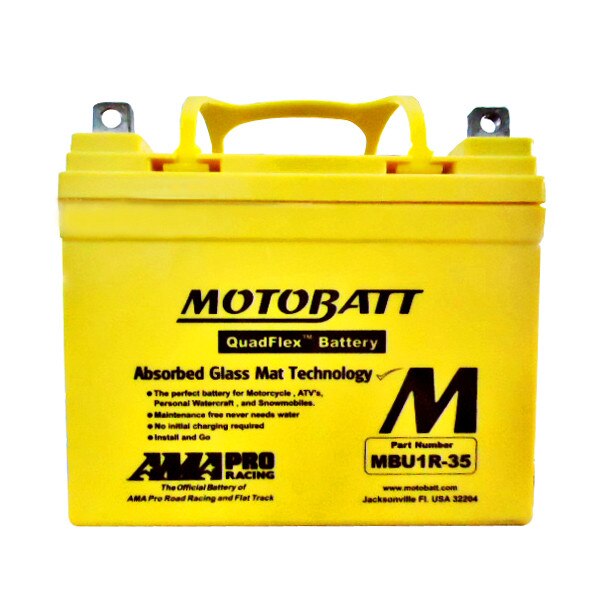

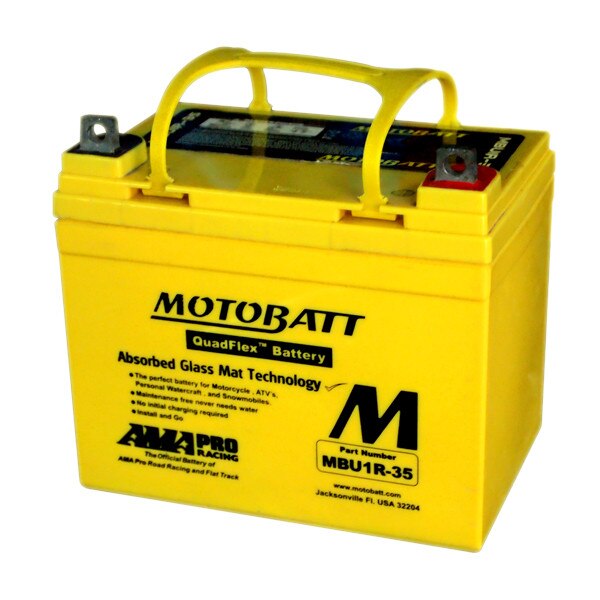

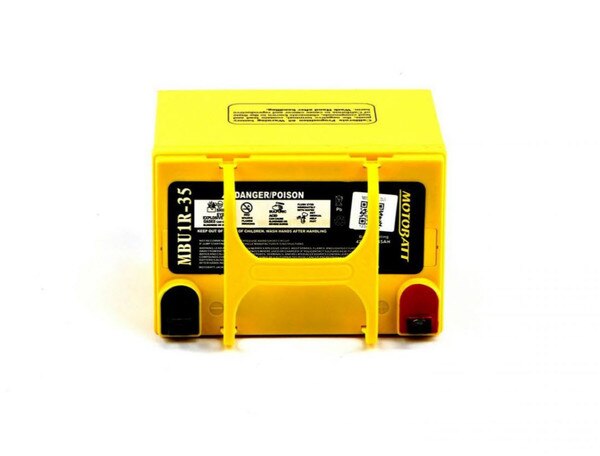

MBU1R-35 Motobatt 12V AGM Battery
SKU: MBU1R-35
Overview
Battery Motobatt AGM MBU1-35 Rhino/Mower Battery*2/32/96
Replaces
Yuasa U1-7, U1-9, U1-32, U1L-11
Heavy Duty Mobility and Deep Cycle Battery
Heavy Duty Mobility and Deep Cycle Battery
Specifications
| Battery Type | MBU1R-35 |
|---|---|
| Voltage | 12 |
| CCA@-18C | 420 |
| MCA | 523A |
| PHCA | 705A |
| Capacity (10HR) | 35Ah Characteristics #77F (25C) |
| Capacity (20HR) | 37.1Ah |
| Capacity (5HR) | 32Ah |
| Dimensions (in / mm) | L:7.67 (195) W:5.16 (130) H:7.13 (179) |
| Weight | 10.5Kg/23.16Lbs |
| Reserve Capacity | @25Amps Minutes @75Amps Minutes |
| Internal Resistance | 5.5 Ohms Fully Charged Battery |
| Self Discharge Rate @77F (25C) | 3 Months 91% 6 Months 82% 9 Months 64% |
| Max Discharge Current | 1000A 5S |
| Charging | Cycle 14.5V-14.9V Float 13.6V-13.8V |
| Terminal | 2, 16x16 (Flag) |
| Screws | 2, M8x16 |
