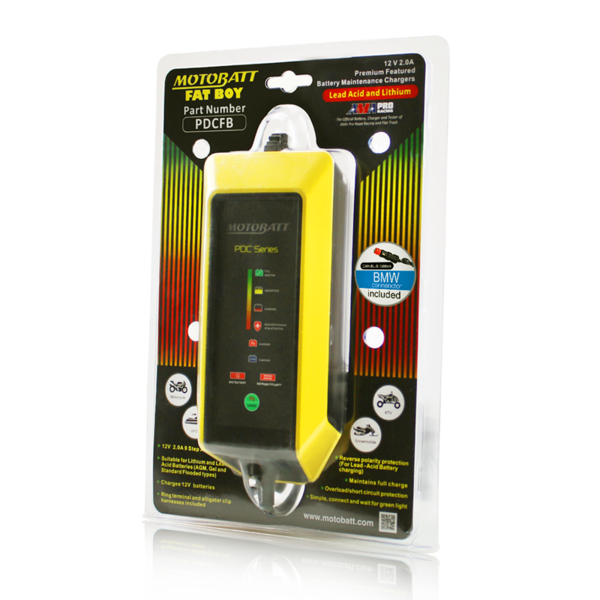

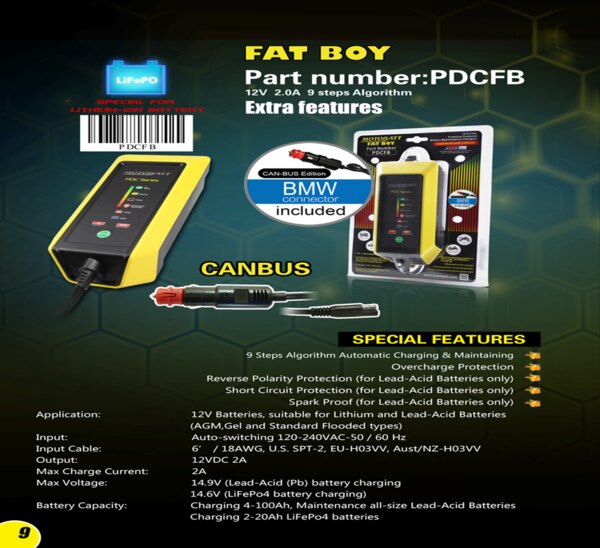

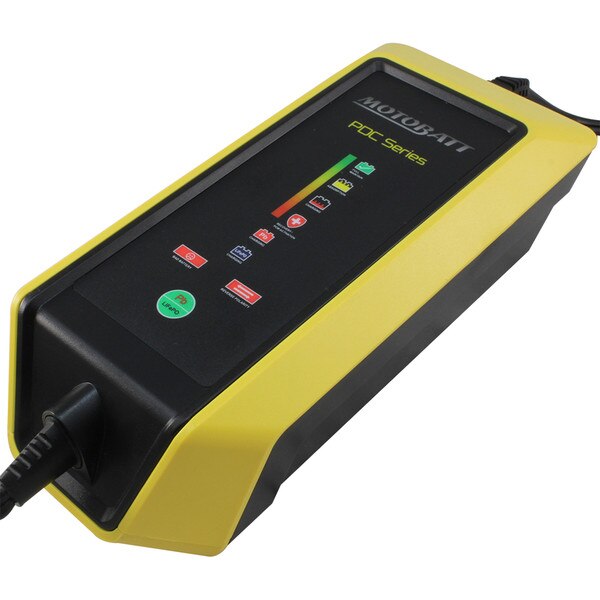

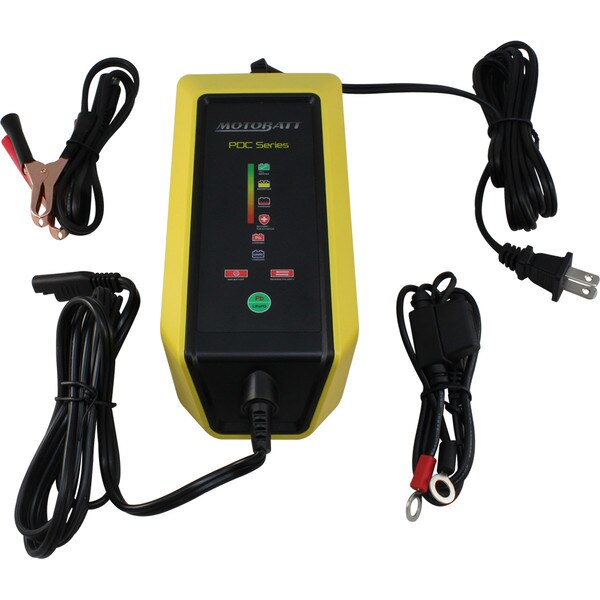

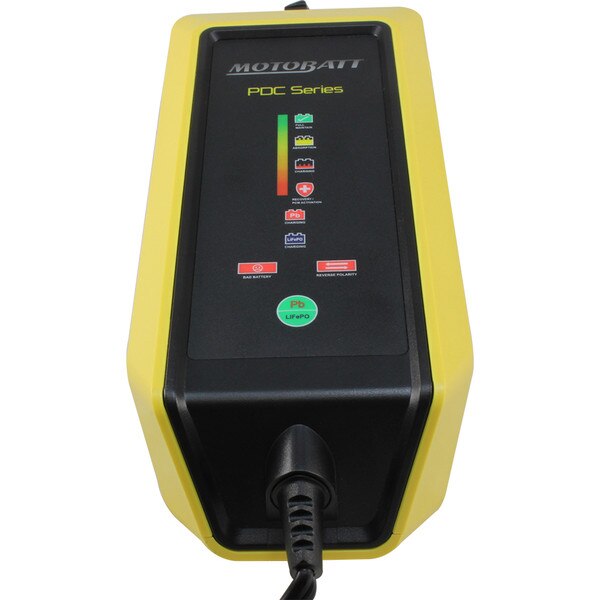

PDCFB Motobatt 12V 2.0 Amp Lithium Charger
PDC Fat Boy 12V 2.0A Lithium and Lead Acid Charger Includes BMW Canbus Connector Sleek New Design with Easy to read Charge Level Indicators Application: Suitable for LiFePO4, AGM, GEL, and Standard Flooded Types. "Smart" microprocessor selects correct chemistry when battery is connected. Plug and Play, no thinking, PDCFB does it for you! Latest technology optimized for Motobatt Batteries. Qualification Stage checks the battery is over 2V for safety reasons, then transitions to Rescue" Phase where an arsenal of 5 different recovery modes can be utilised to revive heavily Sulphated or deeply discharged batteries. Generally at this stage unusually high voltage is seen early in the charge cycle, once the rescue phase is done the battery is ready for Soft Start Phase When the charger detects a low initial state of charge, voltage and current are delivered at a specific rate to assist the battery recovery before entering Pulse charging mode. Pulse Phase provides a high frequency pulse charge to help the newly recovering battery to accept charge as it enters recondition mode. Recondition Phase continues to work the battery at a slightly higher voltage and amperage to re-activate the battery plates for improved depth of charge. Now that the battery has been eased back to life……. Bulk charge phase can begin giving constant current to the battery up to about 80% of its capacity. Absorption Phase begins with constant voltage being supplied while current is reduced. This occurs according to the batteries ability to accept charge up to 100%. Check Phase is now activated to monitor the batteries ability to hold the charge properly, if not it will cycle back through the entire process for 24 hours or more until it determines the battery cannot be recovered. For revived batteries it then enters Maintenance Phase where the battery can stay indefinitely connected to the charger. As the battery drops voltage while unused, the unit will activate when needed to ensure a full state of readiness. Keeping your batteries properly maintained with dramatically Extend working Life.
|Charger Type||Part Number PDCFB Motobatt Fat Boy Lithium and Lead Acid Charger|
|Algorithm||9 Step Automatic Charging and Maintaining|
|Input||Auto Switching 120-240VAC-50/60Hz|
|Max Voltage||14.9V (Pb) 14.6V (LiFePO4)|
|Input Cable||6Ft 18AWG, US SPT-2, EU-H03VV|
|Application||12V Batteries Standard flooded, AGM, GEL, Lithium|
|Special Features||Overcharge Protection, Reverse Polarity protection (lead acid battery only), Short circuit protection (lead acid only), Spark Proof (lead acid only) Battery Recovery Mode (lead acid only)|

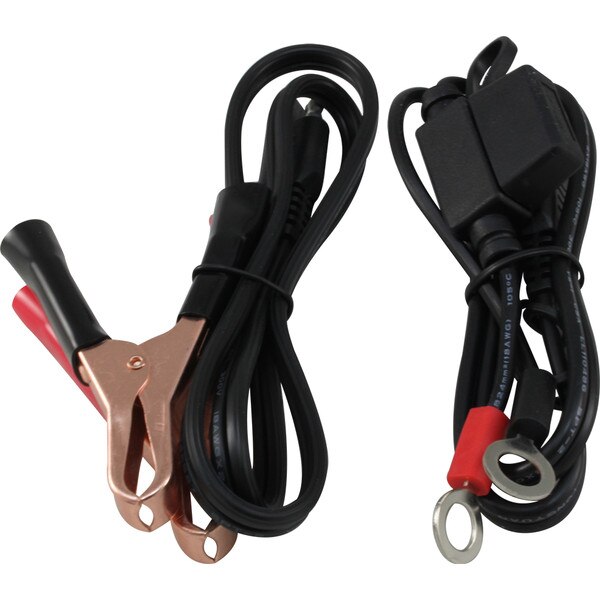

|Accessories Included||MB-CCRT 21" Length, 6mm Diameter RIng Terminal with 7.5A Fuse and 2DIN connector plug, MB-MAP 21" Length BMW CANBUS Connector (flex fit lighter plug), MB-CCAC 21" Length, Alligator Clip Leads|
|Recommended Battery||4-100AH Lead Acid Battery, 2-20AH LifePo4 Battery|
