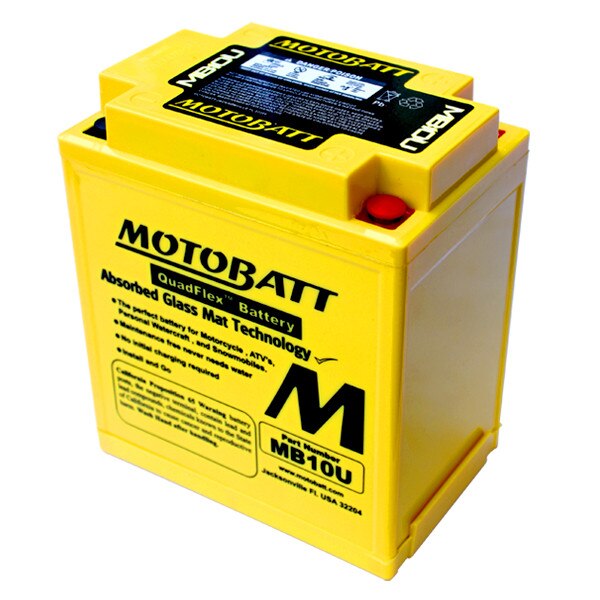

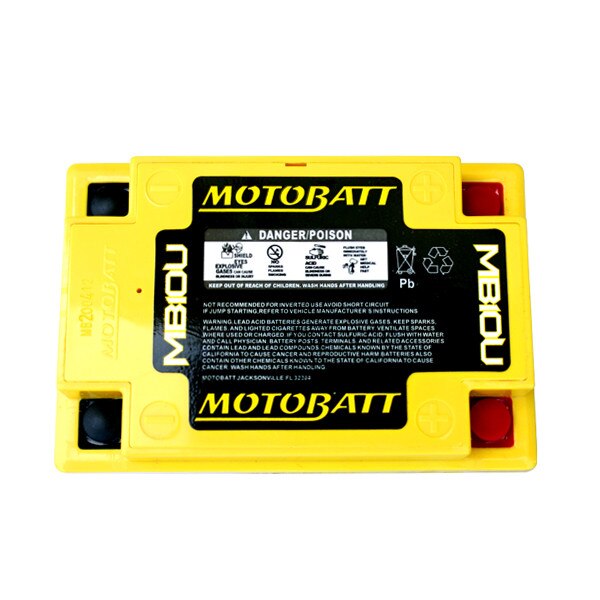

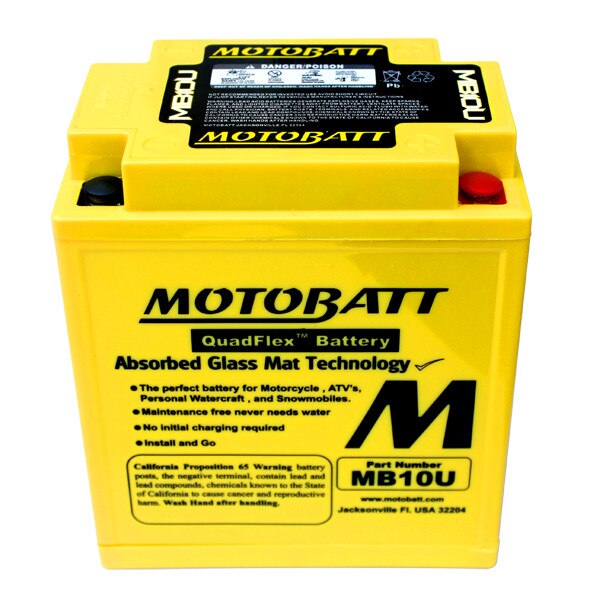

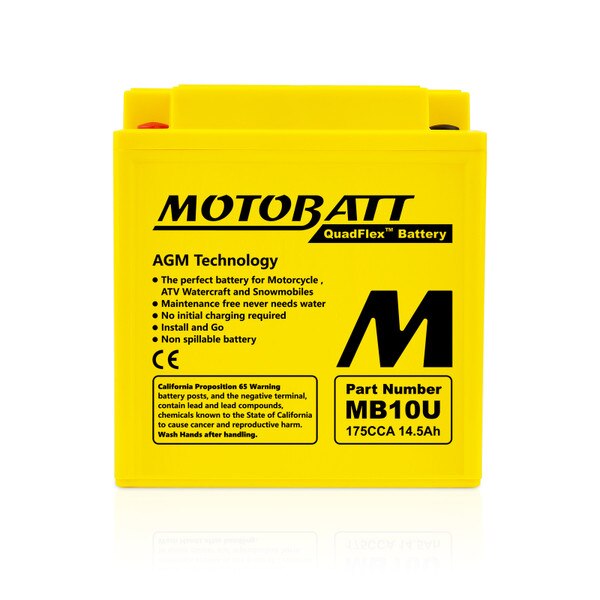

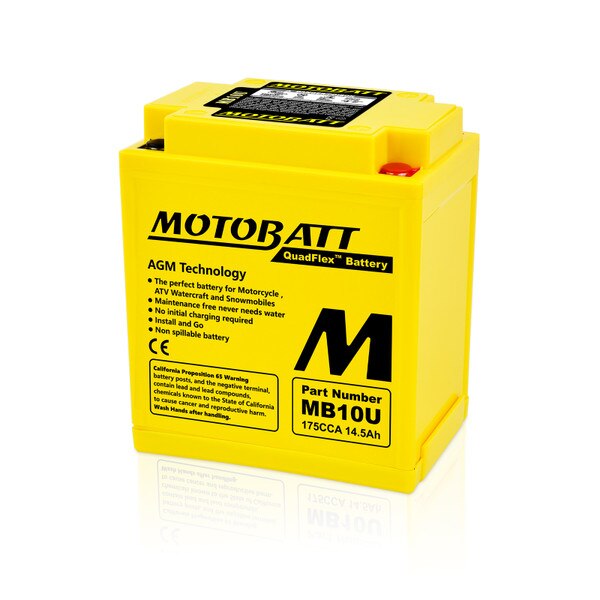

MB10U Motobatt 12V AGM Battery
SKU: MB10U
Overview
Battery Motobatt AGM YB10LA2/AA2/LB/LB2 *4/72/256
Replaces
Yuasa YB10LA2, YB10AA2, YB10LB, YB10LB2, 12N103A, 12N103A1, 12N103A2, 12N103B, 12N113A, 12N113B *4
Specifications
| Battery Type | MB10U | |
|---|---|---|
| Voltage | 12 | |
| CCA | 175 | |
| MCA | 238A | |
| PHCA | 420A | |
| Capacity (10HR) | 14.5Ah | |
| Weight | 4.30kg / 9.48Ibs | |

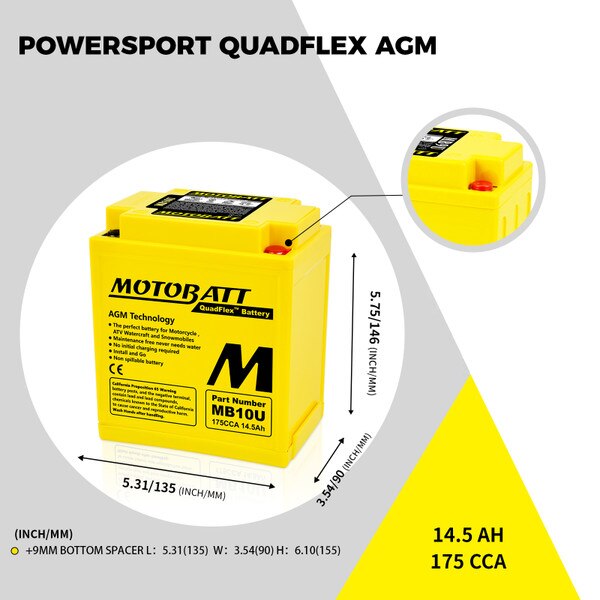

| Dimensions (in / mm) | L: 5.31(135) W: 3.54(90) H: 5.75(146) TH: 6.10(155 | |

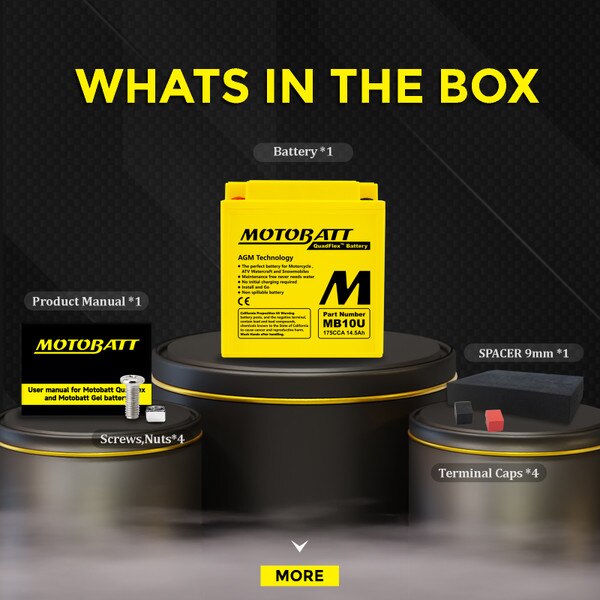

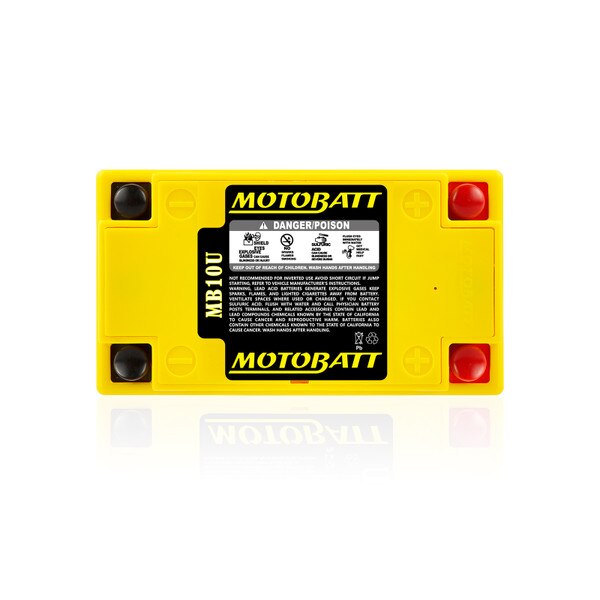

| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2, M6x2.5 (Part#MPT2) | |
| Screws | 4, M6X7 (Part#2xMPS2) | |
| Allen Wrench | 1, 4x4 (Part#MPAK2) | |
| Terminal Caps | 4, 12x5.5 (Part#2xMPC2) | |
| Spacer | 1, 9mm Bottom (Part#MPBS3) | |
