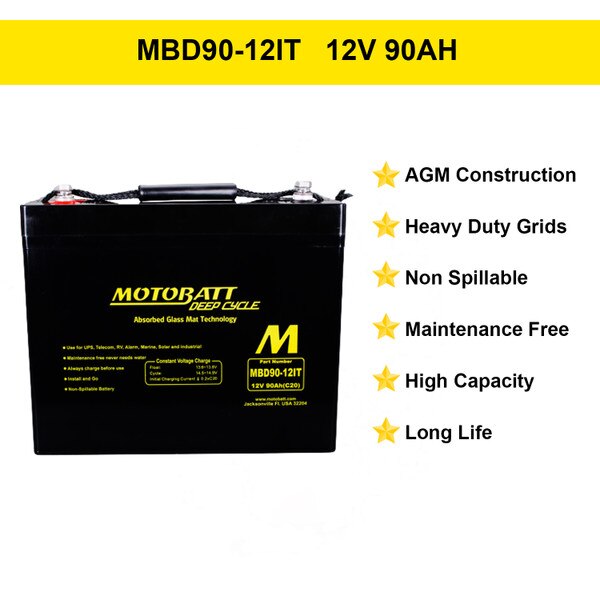

MBD9012IT Motobatt 12V AGM Deep Cycle Battery
SKU: MBD9012IT
Overview
Battery Deep Cycle Motobatt AGM DC90-12 85AH (10HR) 90AH (20HR) BCI-24
Replaces
Group 24 GPL24T Lifeline, DC85-12 Full River, Rolls S12-95AGM-RE. Solar, Telecommunications, RV, Wheelchair Mobility, Marine, Automotive, Renewable Energy Storage, Security and UPS in fact anywhere a quality deep cycle battery is required.
Specifications
| Battery Type | MBD9012IT Deep Cycle Battery |
|---|---|
| Specifications | |
| Voltage | 12 |
| Rated Capacity (20HR) | 90AH |

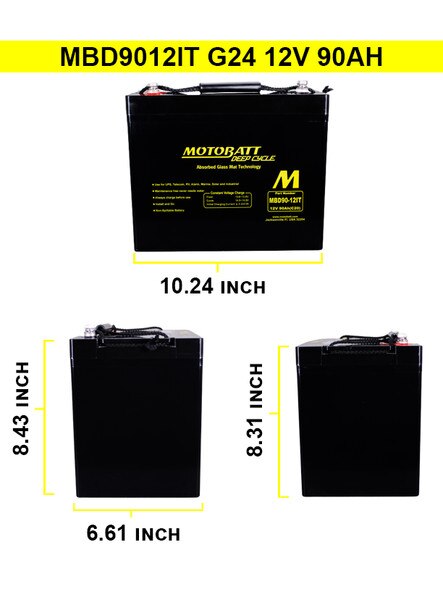

| Dimensions (in / mm) | L: 10.24 (260) W: 6.65 (169) H:8.31 (211) 8.46 (215mm) Total Height including terminals |
| Weight | 57.32 Lbs / 26KG |
| Capacity 77F (25C) | |
| 20 Hour Rate (4.7A to 10.5 Volts) | 90AH |
| 10Hour Rate (9.0A to 10.5 Volts) | 84AH |
| 5 Hour Rate (15.5A to 10.5 Volts) | 75AH |
| Reserve Capacity @25Amps | 180 Minutes |
| Internal Resistance (Fully Charged) | 5.5 Ohms |
| Capacity Affected by temperature (20HR) | 104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65% |
| Self Discharge 77F (25C) | 3 Months 91% 6 Months 82% 12 Months 64% |
| Max Discharge Current 77F (25C) | 1000A 5S |
| Terminal | M8 (With TP08 Brass AP and Stainless Steel Nuts and Bolts Included) |
| Charging Constant voltage | Cycle 14.5V-14.9V/77F (25C) Float 13.6V-13.8V/77F (25C) |
