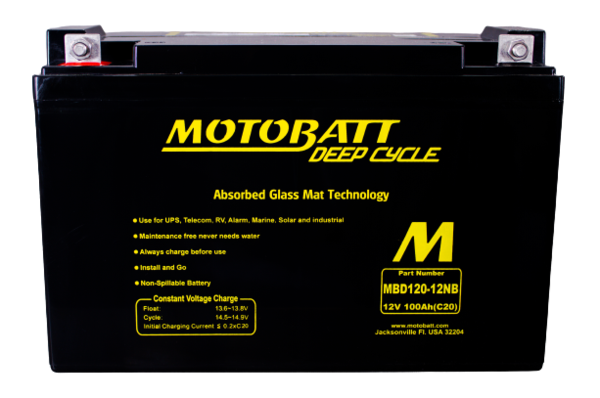

MBD12012IT Motobatt 12V AGM Deep Cycle Battery
SKU: MBD12012IT
Overview
Motobatt Deep Cycle Batteries offer the largest Amp Hour capacity per case size in the Industry today. AGM Maintenance Free valve regulated (VLRA) construction make Motobatt the definitive choice for the discerning buyer. Extremely clean and able to be charged without the danger of spillages and heavy gassing our batteries are perfect for inside charging and usage. With Motobatts unique construction techniques we have been able to develop industry leading reserve power capable of multiple charge cycles. Features: High Purity Lead calcium alloy grids Thicker full frame plates Hand Made for exceptional Quality Control Process Proprietary Paste formulation for heavy duty performance Low resistance micro porous glass matt separators Faster charge acceptance C10 Rated Longer Cycle Life with Extreme durability Multi attachment terminals for solar, automotive, industrial or marine
Replaces
Group 31 Lifeline GPL31T, Full River DC120-12, Rolls R12-110-RE Solar, Telecommunications, RV, Wheelchair Mobility, Marine, Automotive, Renewable Energy Storage, Security and UPS in fact anywhere a quality deep cycle battery is required.
Specifications
Battery Type | MBD12012IT |
---|---|
Specifications | |
Voltage | 12 |
Rated Capacity (20HR) | 120AH |
Dimensions (in / mm) | Total Height Including Terminals: 220mm (8.66") L:12.99 (330) W:6.73 (171) H:8.50 (216) |
Weight | 34.5KG (76.04 lbs) |
Capacity 77F (25C) | |
20 Hour Rate (6.5A to 10.5 Volts) | 120AH |
10Hour Rate (12.5A to 10.5 Volts) | 110AH |
5 Hour Rate (21.2A to 10.5 Volts) | 100AH |
Reserve Capacity @25Amps | 235 Minutes |
Reserve Capacity @75Amps | 68 Minutes |
Internal Resistance (Fully Charged) | 3.5 Ohms |
Capacity Affected by temperature (20HR) | 104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65% |
Self Discharge 77F (25C) | 3 Months 91% 6 Months 82% 12 Months 65% |
Max Discharge Current 77F (25C) | 1000A 5S |
Terminal | M8 (With TP08 Brass AP and Stainless Steel Nuts and Bolts Included) |
Charging | Cycle 14.5V-14.9V Float 13.6V-13.8V |
