MBD12012NB Motobatt 12V AGM Deep Cycle Battery
SKU: MBD12012NB
Specifications
Specifications
| Battery Type | MBD12012NB |
|---|---|
| Specifications | |
| Voltage | 12 |
| Rated Capacity (20HR) | 120AH |

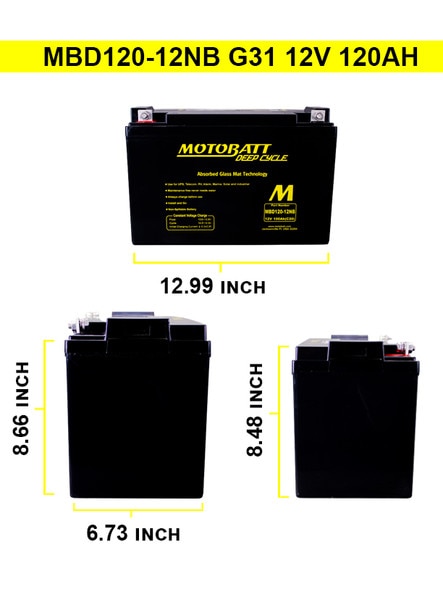

| Dimensions (in / mm) | Total Height Including Terminals: 220mm (8.66") L:12.99 (330) W:6.73 (171) H:8.50 (216) |
| Weight | 34.5KG (76.04 lbs) |
| Capacity 77F (25C) | |
| 20 Hour Rate (6.5A to 10.5 Volts) | 120AH |
| 10Hour Rate (12.5A to 10.5 Volts) | 110AH |
| 5 Hour Rate (21.2A to 10.5 Volts) | 100AH |
| Reserve Capacity @25Amps | 235 Minutes |
| Reserve Capacity @75Amps | 68 Minutes |
| Internal Resistance (Fully Charged) | 3.5 Ohms |
| Capacity Affected by temperature (20HR) | 104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65% |
| Self Discharge 77F (25C) | 3 Months 91% 6 Months 82% 12 Months 65% |
| Max Discharge Current 77F (25C) | 1000A 5S |
| Terminal | M8 (With TP08 Brass AP and Stainless Steel Nuts and Bolts Included) |
