MB-PROPLUS Tester
SKU: MB-PROPLUS
Overview

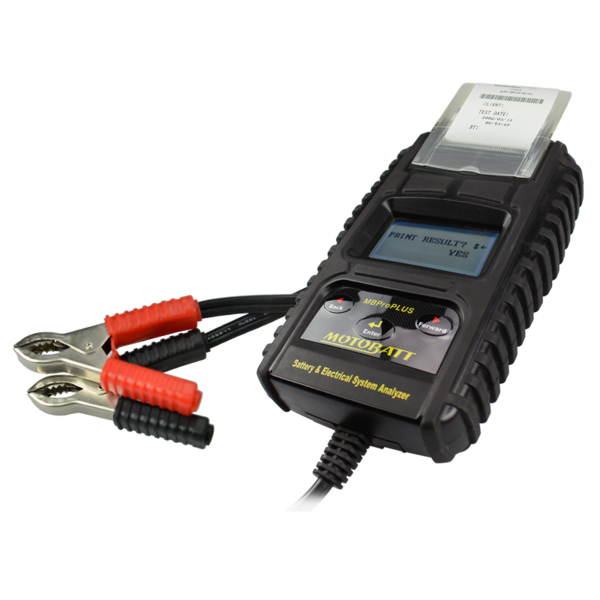

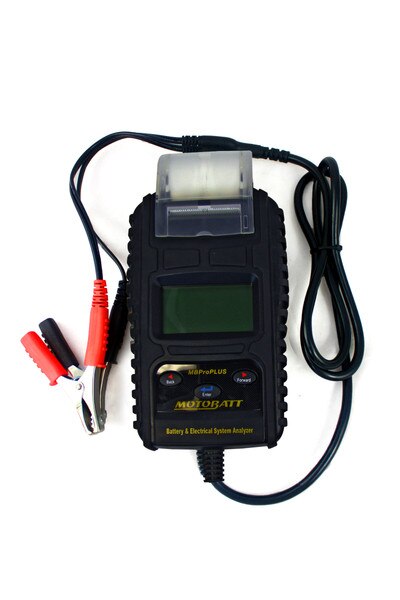

Motobatt MB-ProPlus Custom Tester 6/12V ProTest & Printer The Ultimate Workshop System and Battery Tester Applications: The Proplus will test any battery up to 2000cca and in addition will test the vehicle charging system. Understand your problem quickly to avoid costly towing and repairs. Extremely simple to use Custom test by Motobatt Part Number. Cycle Screen and find the matching battery. Normal test by SLA, AGM, Flooded Types JIS, SAE Press the Test button to see the result. State of Charge and State of Health Indicator Print Y/N option for attaching to Job Cards and dealing with warranty issues. Readily Available 2 1/4 Thermal Roll Back-Lit with Adjustable brightness for dark work areas Applications: 6 and 12V Battery, 12 & 24V Charging and Starting System Operating Range: 40-2000 CCA Battery Test / Rating Selection: Custom test by MotoBatt part number code, Regular Liquid, VRLA / Gel, AGM Spiral, AGM Flat Plate, - CCA(SAE), IEC, DIN, JIS, E Languages: 7 - English, French, Spanish, German, Italian, Portuguese Voltmeter: 1.5 to 30V Test Type: Micro Load Dynamic Resistance Dimensions: 4 line - 16 chartacter LCD, Back-Lit with adjustable brightness Features: Custom Test by MotoBatt part number capability for increased accuracy, easy to use, numeric and graphical state of health (SOH) and state of charge (SOC) test results, built in printer with standard 2-1/4" readily available thermal printer paper roll, accurately tests discharged batteries, durable impact resistant housing with protective molded in rubber grip, field replaceable lead, date and time function, and Warranty Code, test counter and bar code (Code 39) printout to support in-store warranty test control processes. MS Excel based Warranty Code de-coder available on www.motobatt.com website. Accessories: 1 standard thermal printer paper roll, Heavy Duty protective plastic carry case, 6 AA batteries. Dimensions L-9.9" (251mm), W- 5" (127mm), H- 2.5" (64mm) 000 Lead Set: Long 70" / 178cm, heavy duty clips
Specifications
Tester Type | MB-ProPlus 12 Volt Battery and 12 Volt and 24 Volt Charging system tester |
---|---|
Application | 12 Volt Battery and 12 and 24 Volt Starting and Charging System |
Operating Range | 40-2000CCA |
Voltage | 12 and 24 Volt |
Battery test Rating system | Customized test display by Motobatt Part number codes, Sealed, AGM, GEL, Spiral, Flat Plate and Flooded Batteries |
Test Parameters | CCA (SAE), IEC, DIN, JIS, EN |
Voltmeter | 1.5 to 30 Volts |
Test Type | Micro Load Dynamic Resistance |
Display | 4 Line 16 Character LCD, Back Lit with adjustable brightness |
Lead Set | Long 70" (178cm) Heavy Duty Test Leads |
Dimensions | Length 9.9" (251mm), Width 5" (127mm), Height 2.5" (64MM) |
Accessories Provided | 1 Standard thermal print roll, 6 AA Batteries, Heavy duty protective carry case |
Languages | English, French, Spanish, German, Italian, Portuguese |
