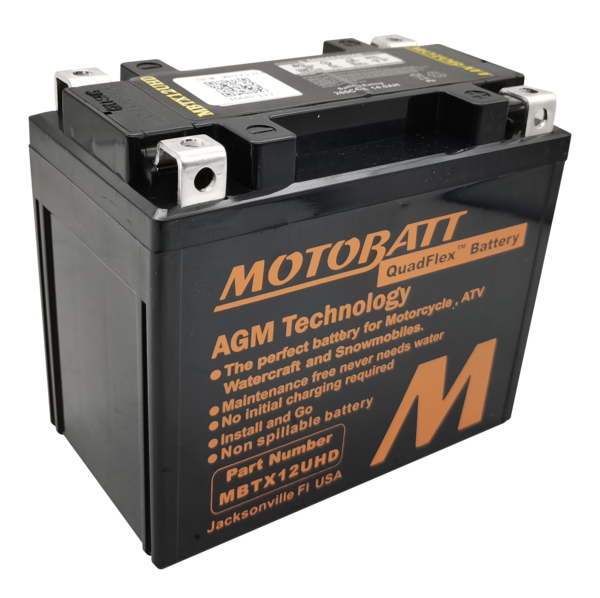

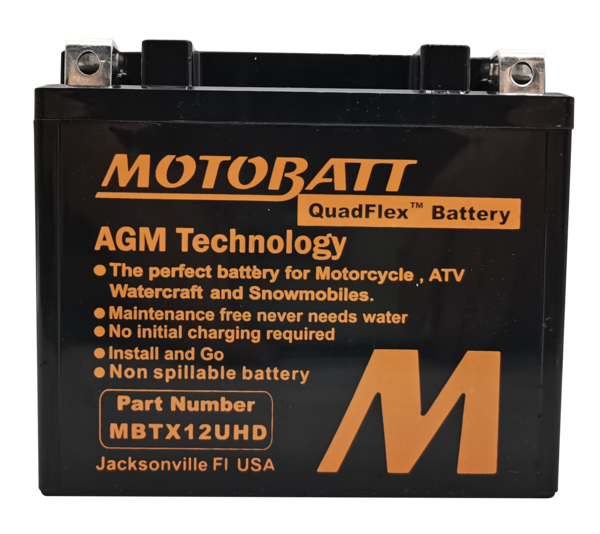

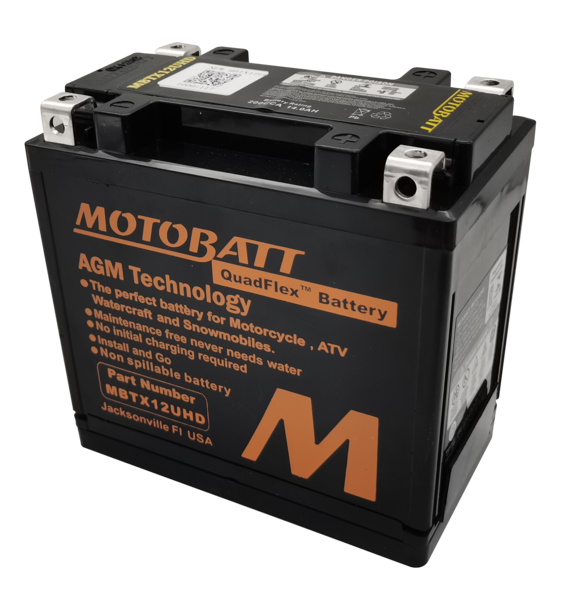

MBTX12UHD Motobatt 12V AGM Battery

SKU: MBTX12UHD
(0) No Reviews yet
$90.40

In Stock

Overview

Motobatt Quadflex batteries , the first and unique 4 terminal system, proposes the best balance between CCA and Amp hour capacity. Due to utilizing the wasted space inside a standard battery case, Motobatt maximizes the dimensions of the plates internally. Additionally the plate grids are made thicker, and that with the additional density of the pasting improves the Amp Hour capacity, durability and Cold cranking Amps. Motobatt has completely changed the Powersport market by improving an old design.

Replaces

Yuasa YB12BB2, YTX12BS, YTX12, YTX14BS, YTX14, YTX14L, YTX14H, YTX14HBS, YTX14LBS, KMX14BS, YTX15, YTX15L, YTX15LBS
DEKA ETX12
ODYSSEY PC545
THIS BATTERY IS TECHNICALLY THE SAME AS MBTX12U JUST THE COLOR IS BLACK

Specifications

Battery TypeMBTX12UHD
Voltage12V
CCA200
Capacity (10HR)14Ah
Weight4.40kg /9.7Ibs
Dimensions (in / mm)L: 5.94(151) W: 3.43(87) H: 5.12(130) TH1: 5.31(135) TH2: 5.71(145)

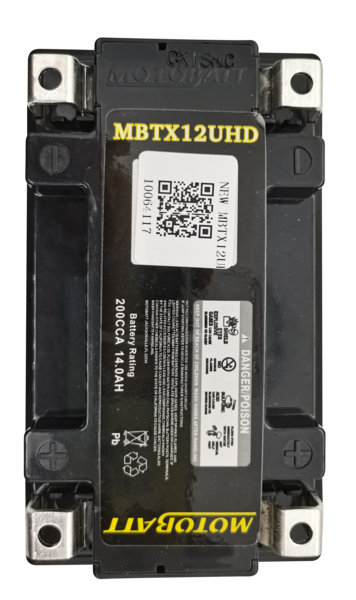

Assembly Figure Terminal Locations4

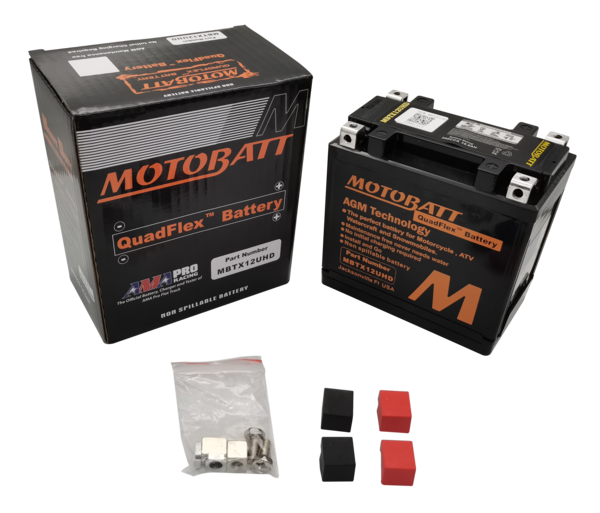

Terminals2, M6x2.5 (Part#MPT2)
Screws2, M6x2.5 (Part#MPT2)
Allen Wrench1, 4x4 (Part#MPAK2)
Terminal Caps4, 12x5.5 (Part#2xMPC2)

WARNING: This product can expose you to chemicals including Sodium salt, Lead and Lead, Nickel (Metallic), which are known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit https://www.p65warnings.ca.gov/.
