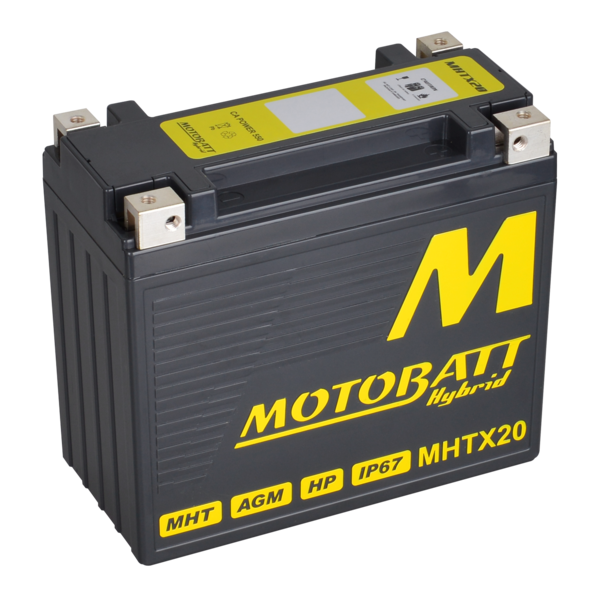

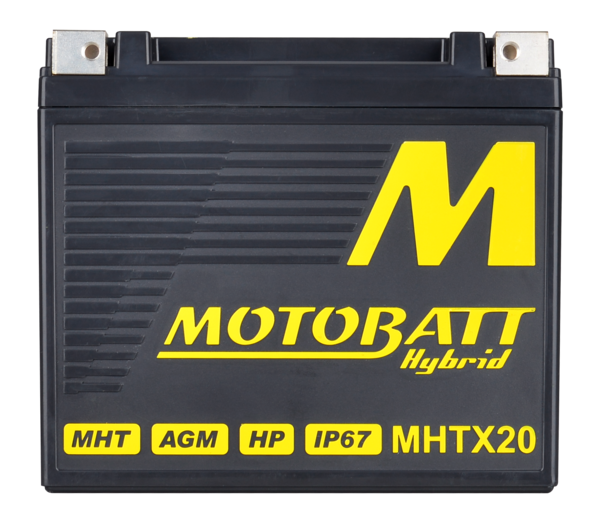

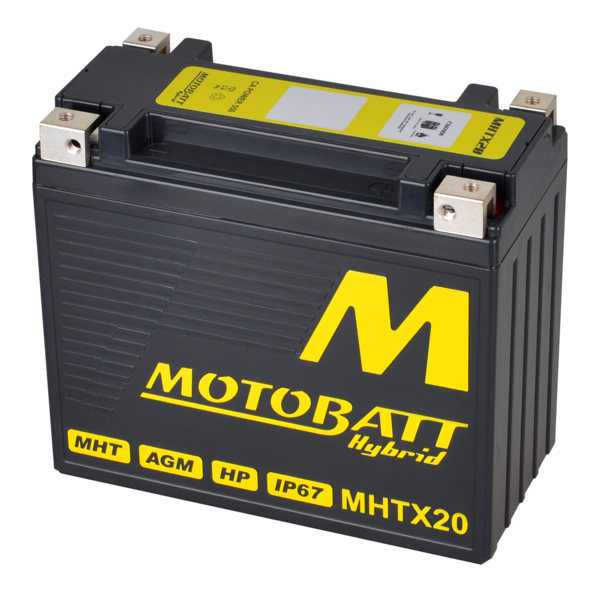

MHTX20 Motobatt Hybrid Lithium Battery

SKU: MHTX20
1 Review
$268.34
RRP: $298.16

Out of Stock

Overview

With a monster 690 Cranking Amps at Ambient temperatures the MHTX20 Hybrid Battery has no peer. Go beyond the limits of both Lead acid and Lithium chemistries in one battery! Once again Motobatt surprises the world in original innovation and technology advances. Placing itself at the forefront of the Powersports industry, after several years of research and development it has launched the newly created Hybrid technology. Motobatt Hybrid was designed specifically to address the known industry challenges with Lithium only batteries in Powersports applications. Larger V Twin motorcycles like Harley Davidson and Ducati draw down hard on the battery as huge inrush currents are required to spin the large starter motors found on these long stroke twins. Any battery not in tip top condition will struggle to "hold the CCA" required to make a successful ignition in modern Big Twins. Motobatt Hybrid has the correct Amp Hour capacity and voltage to create the "watts" required for the job. A prefect and harmonious blend of Lead and Lithium achieving the a much superior performance than either by way of increased Amp Hour capacity and Lithium Cranking performance. You can read a full article here https://www.motobatt.us/blog/motobatt-hybrid-batteries-on-the-frontier-of-innovation Hybrid can replace 92 High capacity part numbers with just 5 SKU's Completely compatible with all Powersport charging systems old or new No Special Charger required, no extra cost for big CCA! Faster charging time, rapid recovery of voltage Uniquely versatile with its "M-Flex" terminal providing solid multi connection posts, fits more bikes Outstanding reliable cranking Power in hot and cold conditions Highest Specific Energy and Energy Density Longer cycle life than Lithium or Lead acid Double the Amp Hour capacity of Lithium, superior to Lead acid Protection against overcharging and over discharging Dynamic cell balancing Longer shelf life Lowest cost of ownership and less landfill Less expensive than Lithium only designs with superior performance 30% Lighter than Lead Acid Designs 3 YEAR WARRANTY

Replaces

Yuasa YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW, YTX20H, YTX20HL, YTX20HL-PW, YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2, YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX, GT16L-BS, GT16BS, CTX19-BS CTX19L-BS , GYZ20H, GYZ20L, GYZ20HL
DEKA ETX16, ETX16L, ETX20L
ODYSSEY PC535, PC625

Specifications

Battery TypeMHTX20U
Voltage12
CCA@-18C550
Capacity (10HR)14 Hybrid Ah, (Equivalent 21 Pb Ah)
MCA (CA@ 0C 7.2V)350
PHCA (CA@ 27C 7.2V)690
Weight4.2kg / 9.25Ibs
Dimensions (in / mm)6.89(175) W: 3.43(87) H: 6.10(155)
TW: 3.94(100) TH: 6.89(151)

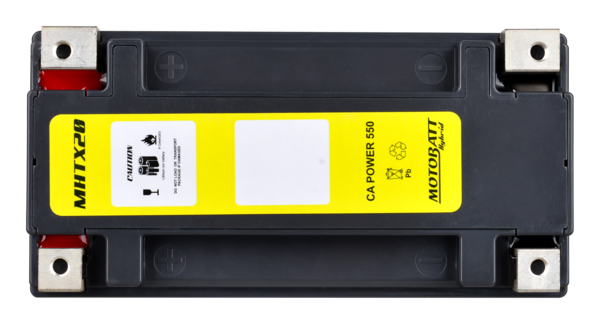

Assembly Figure Terminal Locations4
Terminal Nut Block2 Pos, M6X1.0 (Part#MHALN01) and 1 Pos, M6X1.0,(#MHALN02)
Screws4, M6X12 (Part#MHAS01) 8, M5X12 (#MHAS02)
Terminal Cover2, (Part#MHATC01) Red,Black
EVA Spacers1, 175x87x20mm, Bottom (Part#MHASP01)
1, 150x70x15mm, Back (Part# MHASP03)

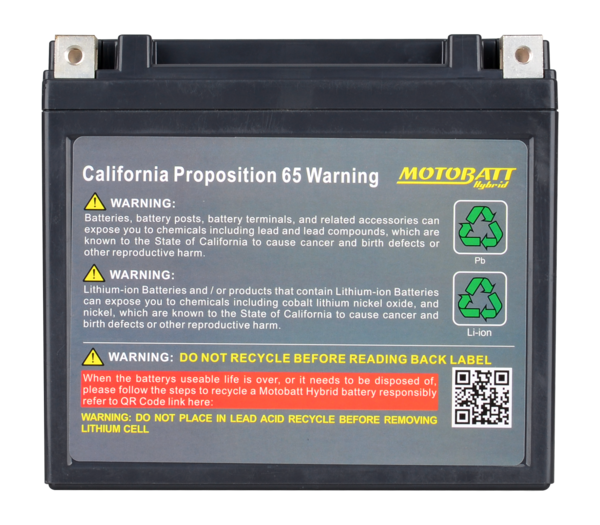

WARNING: This product can expose you to chemicals including Sodium salt, Lead and Lead, Nickel (Metallic), which are known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit https://www.p65warnings.ca.gov/.

Downloads

Ask a Question

Product Enquiry

Welcome to the contact us form. Please select the reason for your contact today from the drop-down menu, and let us know how to get hold of you by filling in the form and what times we can reach you. Enquires can take 24-48 hours depending on demand, but we will do our best to get right back to you!

Ratings & Reviews

1 review

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

Cranks much harder than my old battery

by

Had a motobatt before and tried this new one in my Dyna. Its pretty. Wow! This thing cranks like a 14 year old. Love it.
