MHTX16 Motobatt Hybrid Lithium Battery
SKU: MHTX16
Overview
Battery Motobatt Hybrid AGM/LifePo4 Rep: YTX16 *4/144
Replaces
Yuasa YB12BB2, YTX12BS, YTX14, YTX14L, YTX14BS, YTX14H, YTX14HBS, YTX14LBS, KMX14BS, GYZ16H, GYZ16HL Harley Davidson, Triumph, Honda TRX500
Specifications
| Battery Type | MHTX16 | |
|---|---|---|
| Voltage | 12 | |
| CCA@-18C | 350 | |
| MCA (CA@ 0C 7.2V) | 250 | |
| PHCA (CA@ 27C 7.2V) | 500 | |
| Capacity (10HR) | 10 Hybrid Ah, (Equivalent 16.5 Pb Ah) | |
| Weight | 2.50kg / 5.5lbs | |
| Dimensions (in / mm) | 5.94(151) W: 3.43(87) H: 5.11(130) TW: 3.94(100) TH: 5.94(151) | |
| Assembly Figure Terminal Locations | 4 |  |
| Terminal Nut Block | 2 Pos, M6X1.0 (Part#MHALN01) and 1 Pos, M6X1.0,(#MHALN02) | |
| Screws | 4, M6X12 (Part#MHAS01) 8, M5X12 (#MHAS02) | |
| Terminal Cover | 2, (Part#MHATC01) Red,Black | |

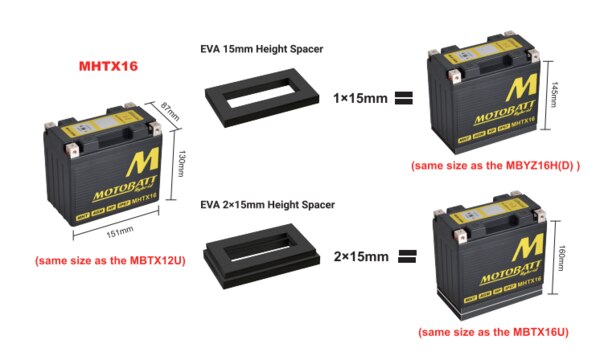

| EVA Spacers | 1, 15mm Back (Part# MHASP03) | |

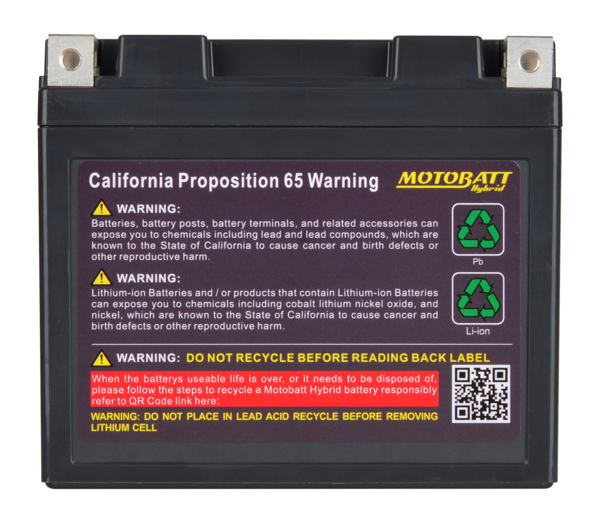

WARNING: This product can expose you to chemicals including Sodium salt, Lead and Lead, Nickel (Metallic), which are known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit https://www.p65warnings.ca.gov/.
