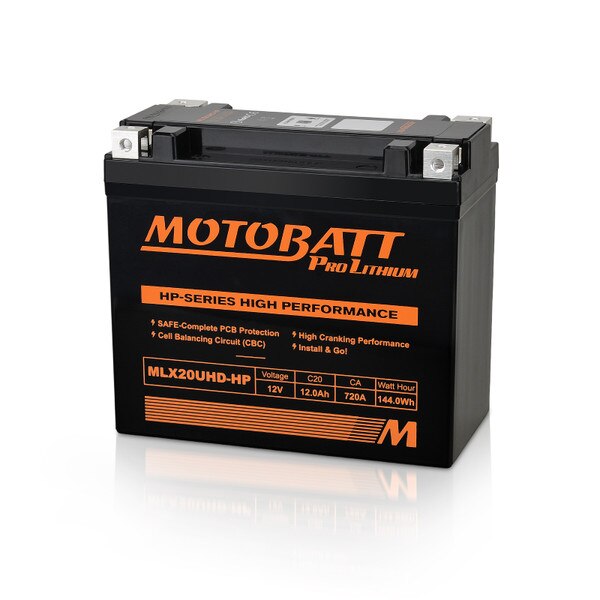

MLX20UHD-HP Motobatt LifePo4 Lithium Battery Replaces MBTX20U
SKU: MLX20UHD-HP
Overview
Battery Motobatt Lithium MLX20UHD-HP
Replaces
Replaces Yuasa YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW, YTX20H, YTX20HL, YTX20HL-PW, YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2, YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX, GT16L-BS, GT16BS, CTX19-BS CTX19L-BS , GYZ20H, GYZ20L, GYZ20HL, 12N163A, 12N163B, 12N164A, 12N164B
Motobatt MBTX20U, MBTX20UHD
Firepower 490-2425
DEKA ETX16, ETX16L, ETX20, ETX20L,
ODYSSEY AGM16CL, AGM20L, PC625
HJX20HQ-FP-B
Motobatt MBTX20U, MBTX20UHD
Firepower 490-2425
DEKA ETX16, ETX16L, ETX20, ETX20L,
ODYSSEY AGM16CL, AGM20L, PC625
HJX20HQ-FP-B

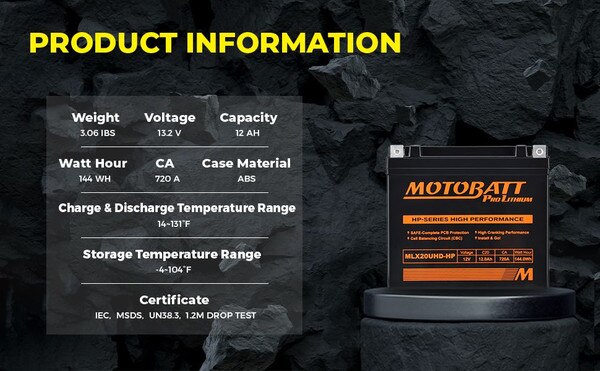

Specifications
| Battery Type | MLX20UHD-HP Pro Lithium Lifepo4 | |
|---|---|---|
| Voltage | 13.2V | |
| Capacity | 12A | |
| CCA | 720 | |
| Weight | 3.06Lbs (1.39KG) | |

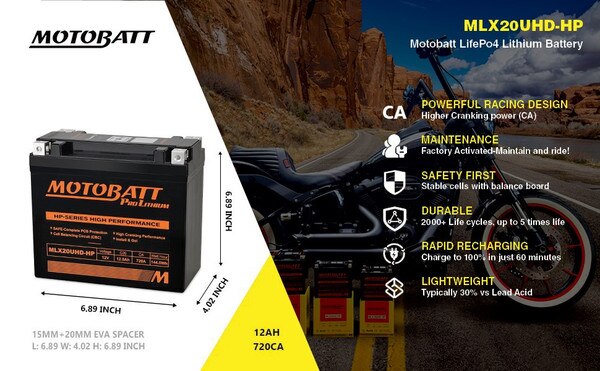

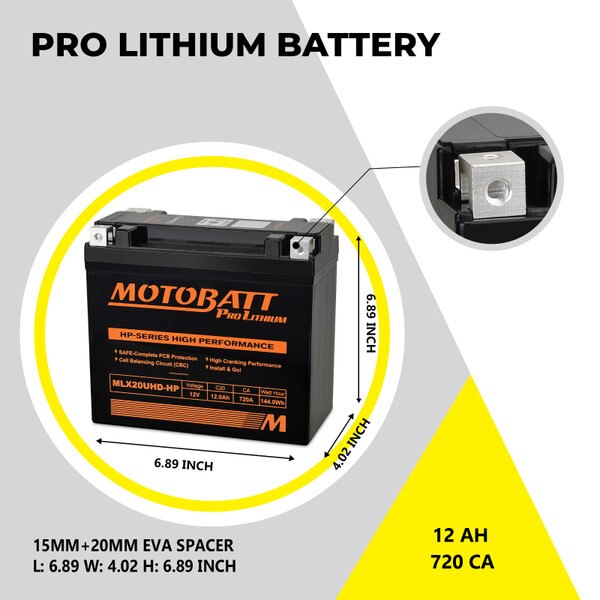

| Dimensions (in / mm) | 6.89(175) W: 3.43(87) H: 6.10(155) TW: 3.94(100) TH: 6.89(175) | |
| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 4, Fixed HD Compatible | |
| Screws | 2, M6X10 (Part#2xMPS3) | |
| Spacers | 1x 175x87x20 mm Height Spacer Pt (EVA7) 1x 170x115x15 mm Width Spacer Pt (EVA8) | |
WARNING: This product can expose you to chemicals including Sodium salt, Lead and Lead, Nickel (Metallic), which are known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit https://www.p65warnings.ca.gov/.
