MBD10512NB Motobatt 12V AGM Deep Cycle Battery

SKU: MBD10512NB
(0) No Reviews yet
$179.95

+50 in Stock

Overview

Motobatt Deep Cycle Batteries offer the largest Amp Hour capacity per case size in the Industry today. AGM Maintenance Free valve regulated (VLRA) construction make Motobatt the definitive choice for the discerning buyer. Extremely clean and able to be charged without the danger of spillages and heavy gassing our batteries are perfect for inside charging and usage. With Motobatts unique construction techniques we have been able to develop industry leading reserve power capable of multiple charge cycles. Features: High Purity Lead calcium alloy grids Thicker full frame plates Hand Made for exceptional Quality Control Process Proprietary Paste formulation for heavy duty performance Low resistance micro porous glass matt separators Faster charge acceptance C10 Rated Longer Cycle Life with Extreme durability Multi attachment terminals for solar, automotive, industrial or marine

Replaces

Group 27 Lifeline GPL27T, Full River DC105-12, Rolls S12-116-RE Solar, Telecommunications, RV, Wheelchair Mobility, Marine, Automotive, Renewable Energy Storage, Security and UPS in fact anywhere a quality deep cycle battery is required.

Specifications

Battery TypeMBD10512NB
Specifications
Voltage12
Rated Capacity (20HR)105AH

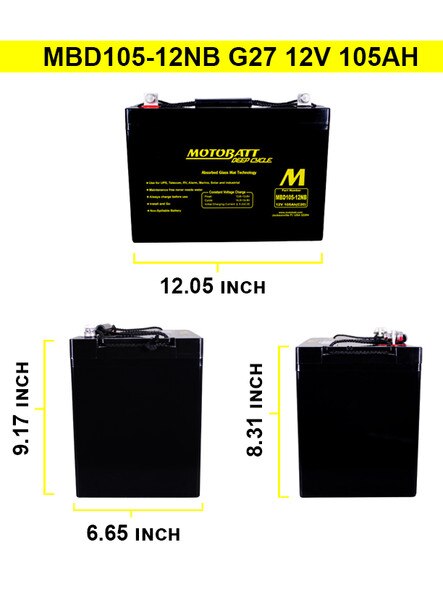

Dimensions (in / mm)Total Height Including Terminals: 215mm (8.46") L:12.05 (306) W:6.65 (169) H:8.31 (211)
Weight30.7KG (67.66 lbs)
Capacity 77F (25C)
20 Hour Rate (5.7A to 10.5 Volts)105AH
10Hour Rate (11.0A to 10.5 Volts)95AH
5 Hour Rate (18.8A to 10.5 Volts)92AH
Reserve Capacity @25Amps227 Minutes
Reserve Capacity @75Amps58 Minutes
Internal Resistance (Fully Charged)4.0 Ohms
Capacity Affected by temperature (20HR)104F (40C) 102% 77F (25C) 100% 32F (0C) 85% 5F (-15C) 65%
Self Discharge 77F (25C)3 Months 91% 6 Months 82% 12 Months 65%
Max Discharge Current 77F (25C)1000A (5S)
TerminalM8 (With TP08 Brass AP and Stainless Steel Nuts and Bolts Included)

WARNING: This product can expose you to chemicals including Sodium salt, Lead and Lead, Nickel (Metallic), which are known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit https://www.p65warnings.ca.gov/.
