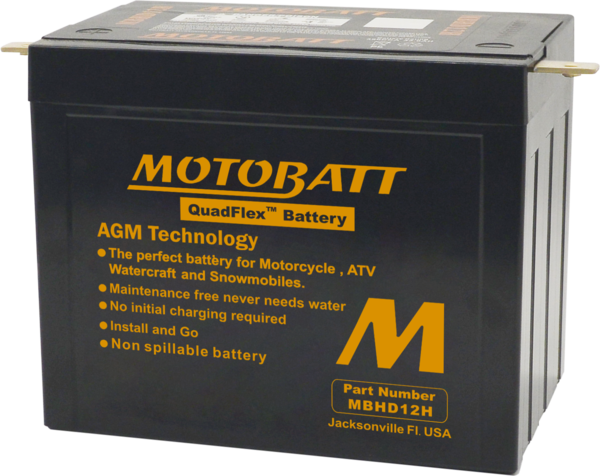

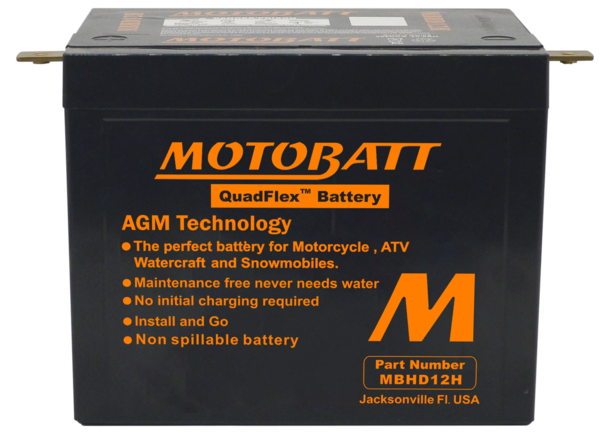

MBHD12H 12V Motobatt AGM Battery
SKU: MBHD12H
Overview
Motobatt Quadflex batteries , the first and unique 4 terminal system, proposes the best balance between CCA and Amp hour capacity. Due to utilizing the wasted space inside a standard battery case, Motobatt maximizes the dimensions of the plates internally. Additionally the plate grids are made thicker, and that with the additional density of the pasting improves the Amp Hour capacity, durability and Cold cranking Amps. Motobatt has completely changed the Powersport market by improving an old design. Features 20% More Amp Hour capacity* 20% More Cold Cranking Amps* Heavy Duty Pure Lead Calcium cast grids for high strength More surface area per plate for superior performance and longevity Military grade Absorbed Glass Matt separators, vibration resistant Multi Terminal Design, Easy to add accessories Factory Activated, No Acid to fill, Simply check charge and go! Extremely low self discharge rate 12 Month Full Replacement warranty
Replaces
Yuasa YHD-12H
Specifications
Battery Type | MBHD12H |
---|---|
Voltage | 12 |
CCA@-18C | 420A |
MCA | 500A |
PHCA | 695A |
Capacity (10HR) | 33Ah, C20 35Ah |
Weight | 10.5kg / 23.17Ibs |
Dimensions (in / mm) | L: 7.87(200) W: 5.12(130) H: 6.42(163) |
Assembly Figure Terminal Locations | 2 |
Terminals | 2, 14X2.5 (Threaded Flag) |
Screws | 2, M6X7 (Part#MPS2) |
Allen Wrench | 1, 4x4 (Part#MPAK2) |
