MLX30UHD-HP Motobatt LifePo4 Lithium Battery Replaces MBTX30U
SKU: MLX30UHD-HP
Overview
Battery Motobatt MLX30UHD-HP Lithium GYZ32, CB30C/LB Y60N24A *2/96
Replaces
Yuasa Y60N24A, Y60N24ALB, Y60N24LA, Y60N24LA2, 12N24-3, 12N24-3A, 12N24-4, 12N24-4A, YIX30, YIX30L, YIX30L-PW, YIX30L-BS, YIX30L-BS-PW, YB30LB, YB30CLB, Y60N30LA, Y60N30LB, GYZ32HL, 52515, 53030
Motobatt MBTX30U, MBTX30UHD, MHTX30, MBC30HL
Firepower HVT-8
DEKA ETX30L, ETX30LA
ODYSSEY AGM28, AGM28L, AGM30L, PC925
Motobatt MBTX30U, MBTX30UHD, MHTX30, MBC30HL
Firepower HVT-8
DEKA ETX30L, ETX30LA
ODYSSEY AGM28, AGM28L, AGM30L, PC925

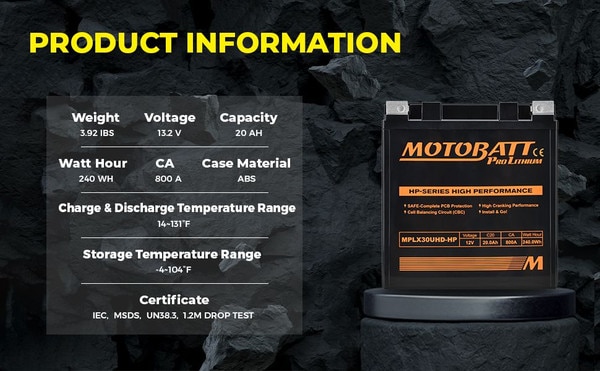

Specifications
| Battery Type | MLX30UHD-HP Lifepo4 | |
|---|---|---|
| Voltage | 13.2 | |
| Capacity (10HR) | 18Ah | |
| CA@-18C | 800CA | |
| Weight | 1.78kg / 3.92Ibs | |

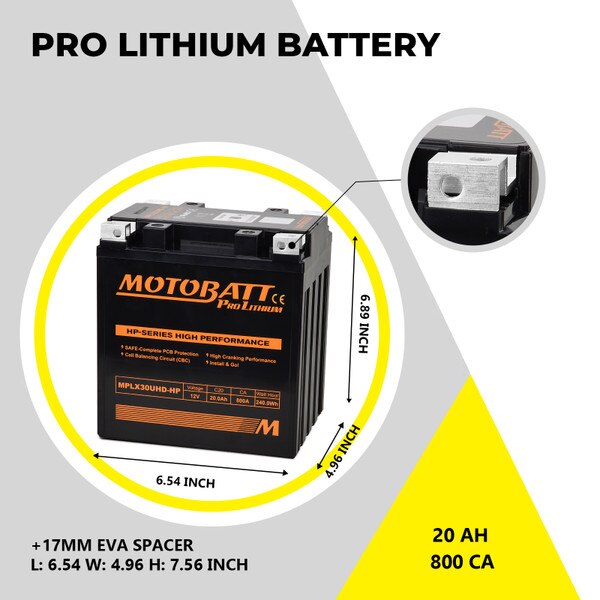

| Dimensions (in / mm) | L: 6.54(166) W: 4.96(126) H: 6.89(175) TH: 7.56(192) | |
| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 4, Fixed | |

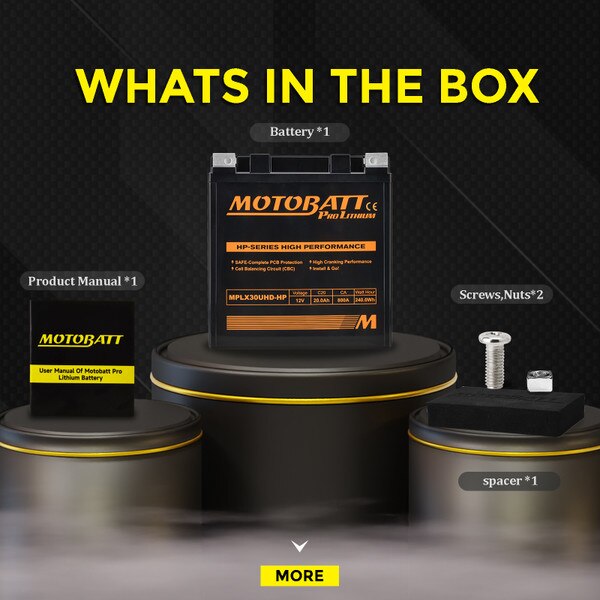

| Screws | 2, M6X10 (Part#2xMPS3) | |
| Spacer | 166x126x175 x 17mm Bottom Spacer (Part#EVA 9), | |
WARNING: This product can expose you to chemicals including Sodium salt, Lead and Lead, Nickel (Metallic), which are known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit https://www.p65warnings.ca.gov/.
